260 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units

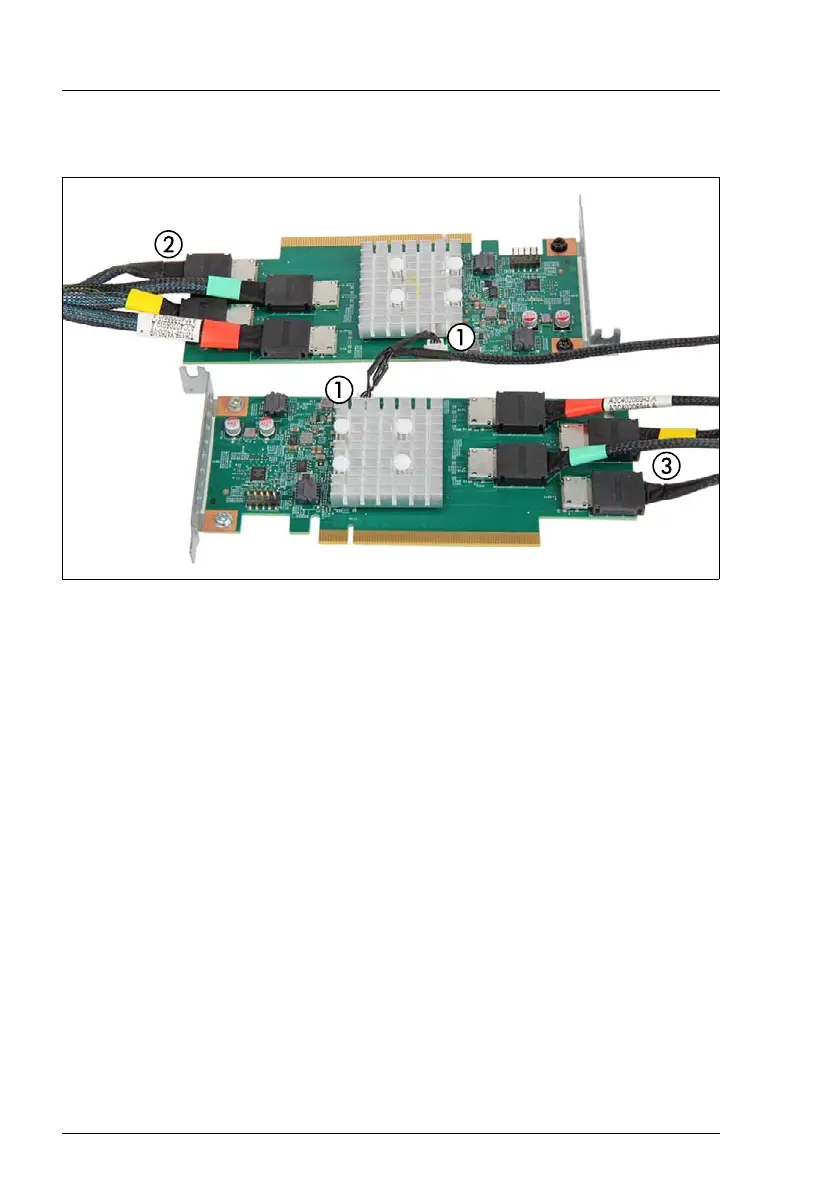

Example configuration with two Retimer controllers in slot 8 and 9
Figure 170: Connecting the cables to the Retimer controllers
Ê Connect the VPP cable to the connector "CON5" on each Retimer controller
(1).
Ê Connect the Retimer cables to the Retimer controllers (2, 3).
