Basic hardware procedures
4.8.3.3 Removing the riser module 2 (FL)

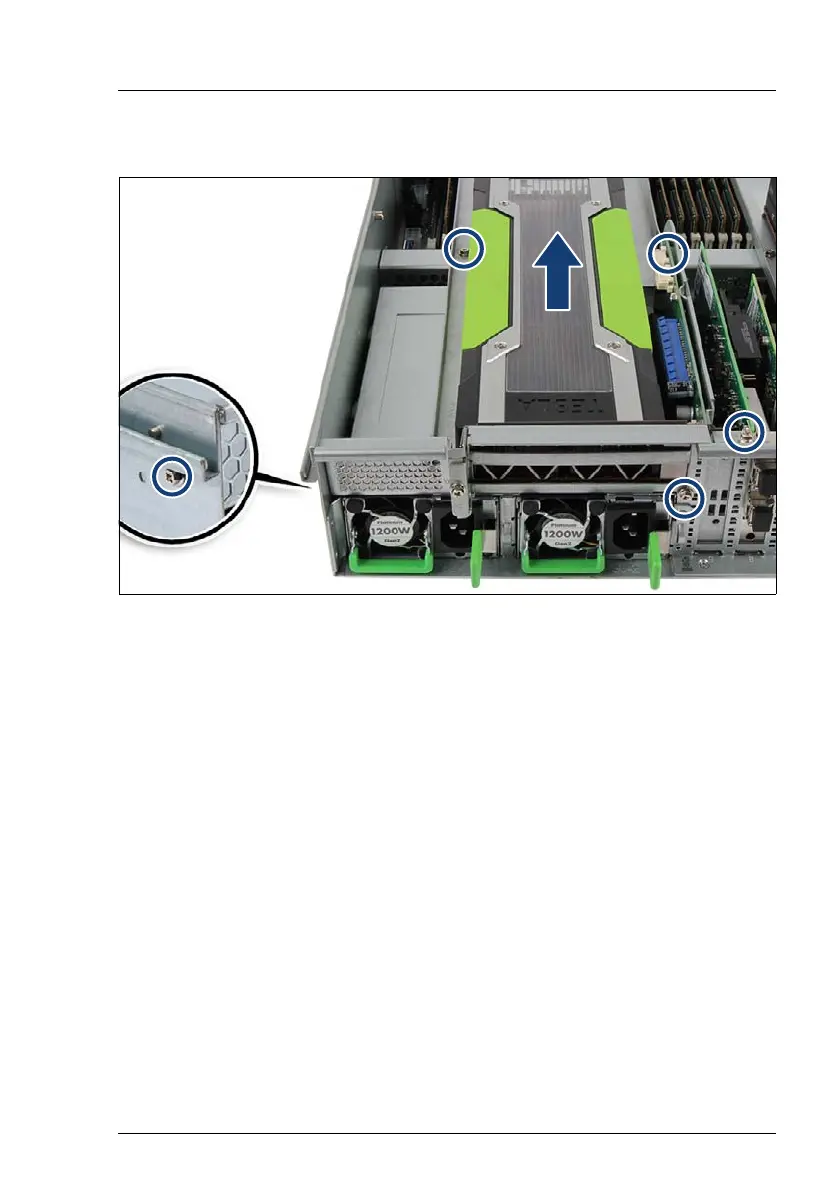

Figure 29: Removing the riser module 2
Ê Remove five screws (see circles and close-up).
Ê Carefully take out the riser module.
