56 Upgrade and Maintenance Manual RX2540 M4
Basic hardware procedures
4.3 Disconnecting the power cord
4.3.1 Disconnecting the power cord (AC PSU)

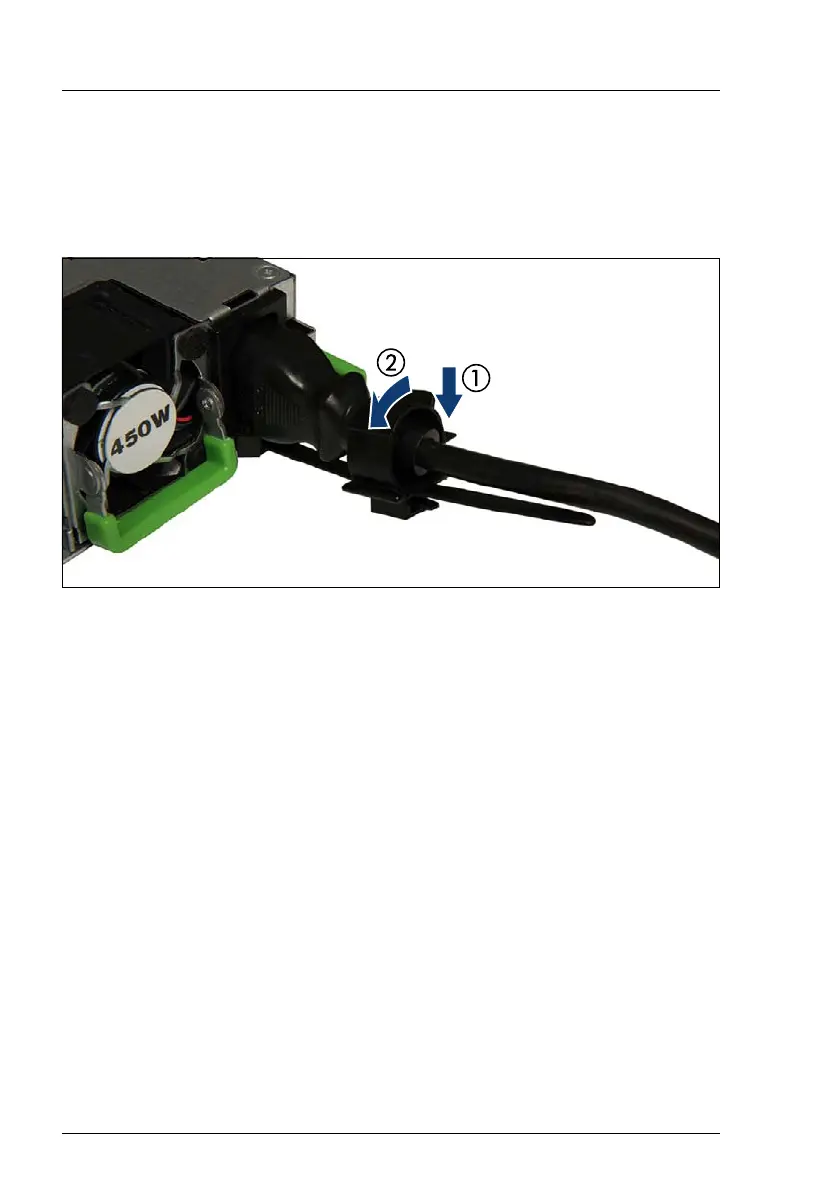

Figure 2: Unlocking the cable clamp of a PSU
Ê Press the cable clamp down until it disengages (1).
Ê Open the cable clamp (2).
Ê Disconnect the power cord from the PSU and remove it from the cable
clamp.

Fujitsu PRIMERGY RX2540 M4 Specifications

General

Processor	Intel Xeon Scalable Processor Family
Form Factor	2U rack server
Chipset	Intel C621
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5-inch SAS/SATA/NVMe drives or Up to 12 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60 (with optional controller)
Expansion Slots	Up to 8x PCIe Gen3 slots
Power Supply	800W or 1200W (1+1 redundant)
Memory Type	DDR4
Management	iRMC S5 (Integrated Remote Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
