RX2540 M4 Upgrade and Maintenance Manual 163
Hard disk drives (HDD) and solid state drives (SSD)
Cabling with RAID controller

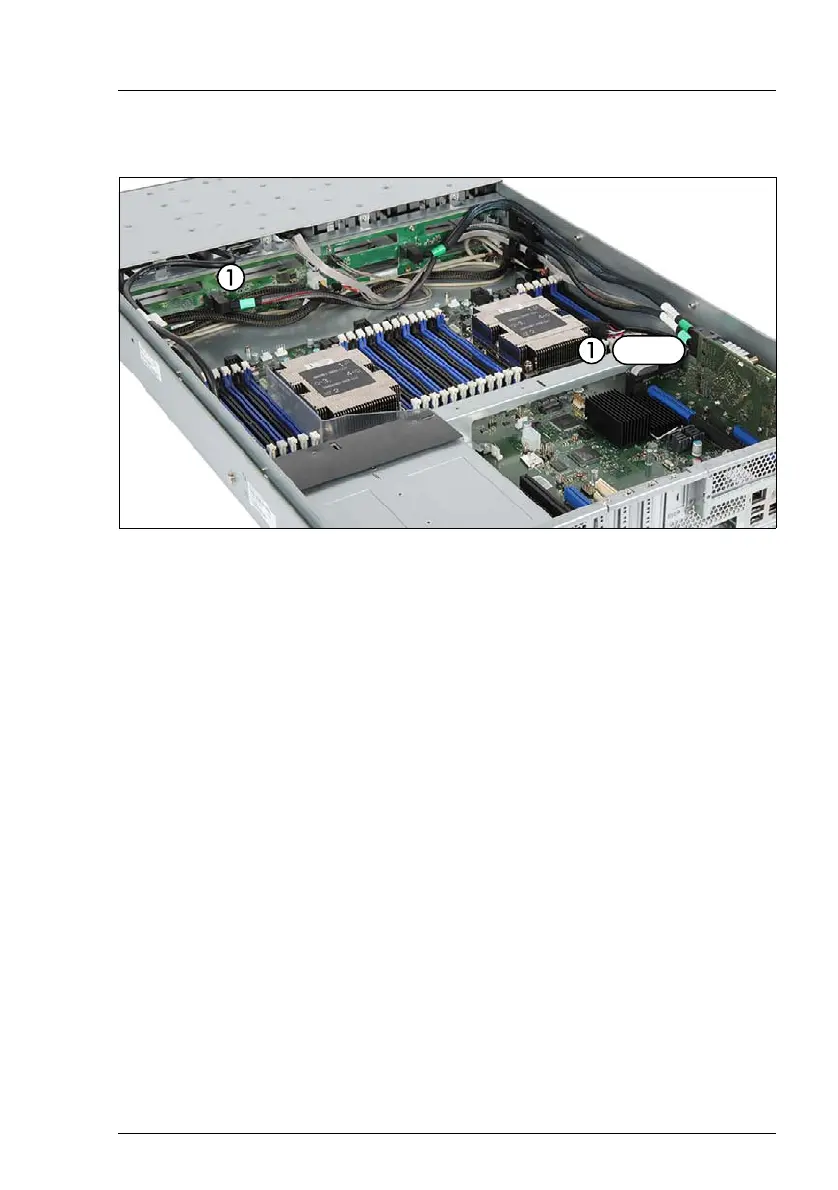

Figure 72: Connecting the second 3.5-inch HDD backplane to the RAID controller
Ê Connect the SAS cable of the second HDD backplane to the connector
"MLC2" on the RAID controller (1).
I For the cable plan, see chapter "Appendix B" on page 573.
7.3.9.4 Concluding steps
Ê "Installing the fan holder" on page 234
Ê Install all removed HDD modules, see section "Installing 3.5-inch HDD
modules" on page 148.
I For detailed information on HDD mounting order, see section "3.5-
inch HDD configurations" on page 145.
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
