Fujitsu PRIMERGY RX2540 M4

450 Upgrade and Maintenance Manual RX2540 M4
Front panel
14.3.1.4 Installing the front VGA board

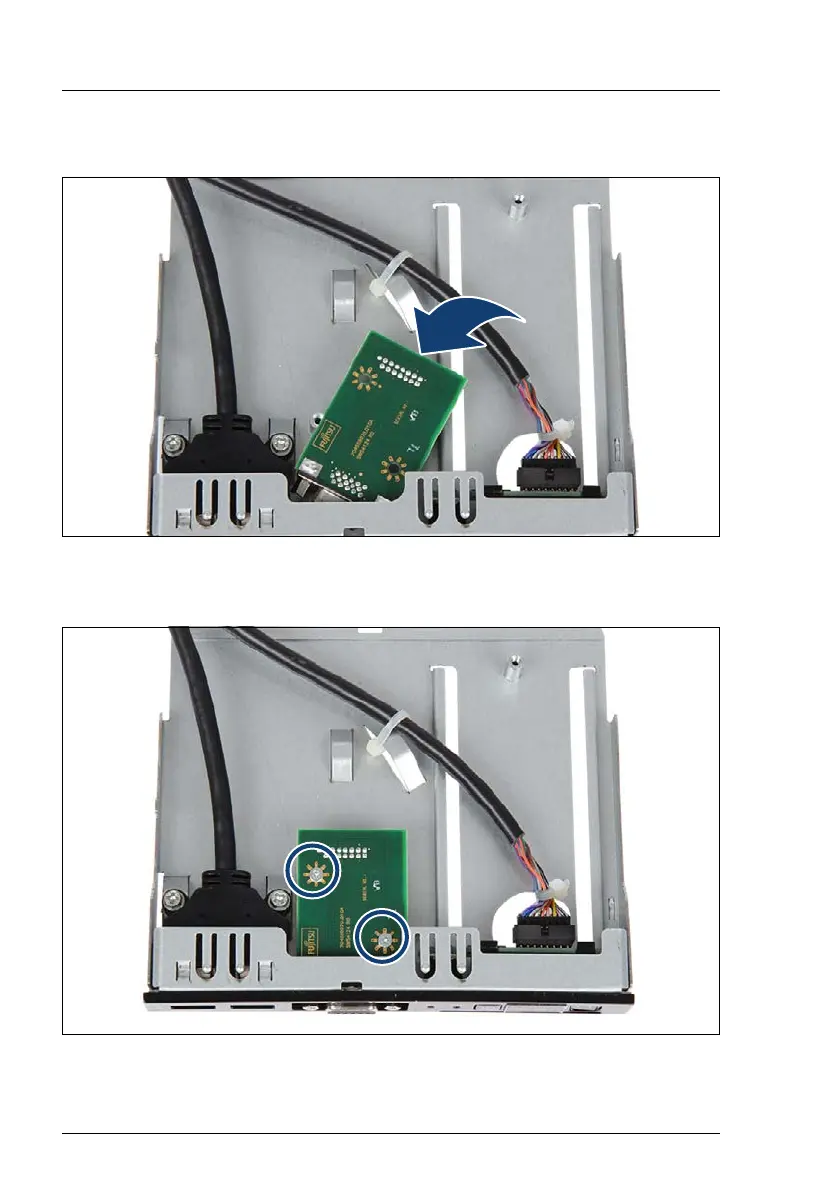

Figure 331: Installing the front VGA board
Ê Insert the front VGA board as shown with the longer connector downward.
Figure 332: Mounting the front VGA board
Ê Fasten the front VGA board with two screws.
