RX2540 M4 Upgrade and Maintenance Manual 533
System board and components
Ê To eject the microSD card, gently push it in and then let go (1).
Ê Pull the microSD card straight out of its slot (2).
Ê Install both microSD cards on the new Dual microSD 64GB Enterprise.
Proceed as described in the following:

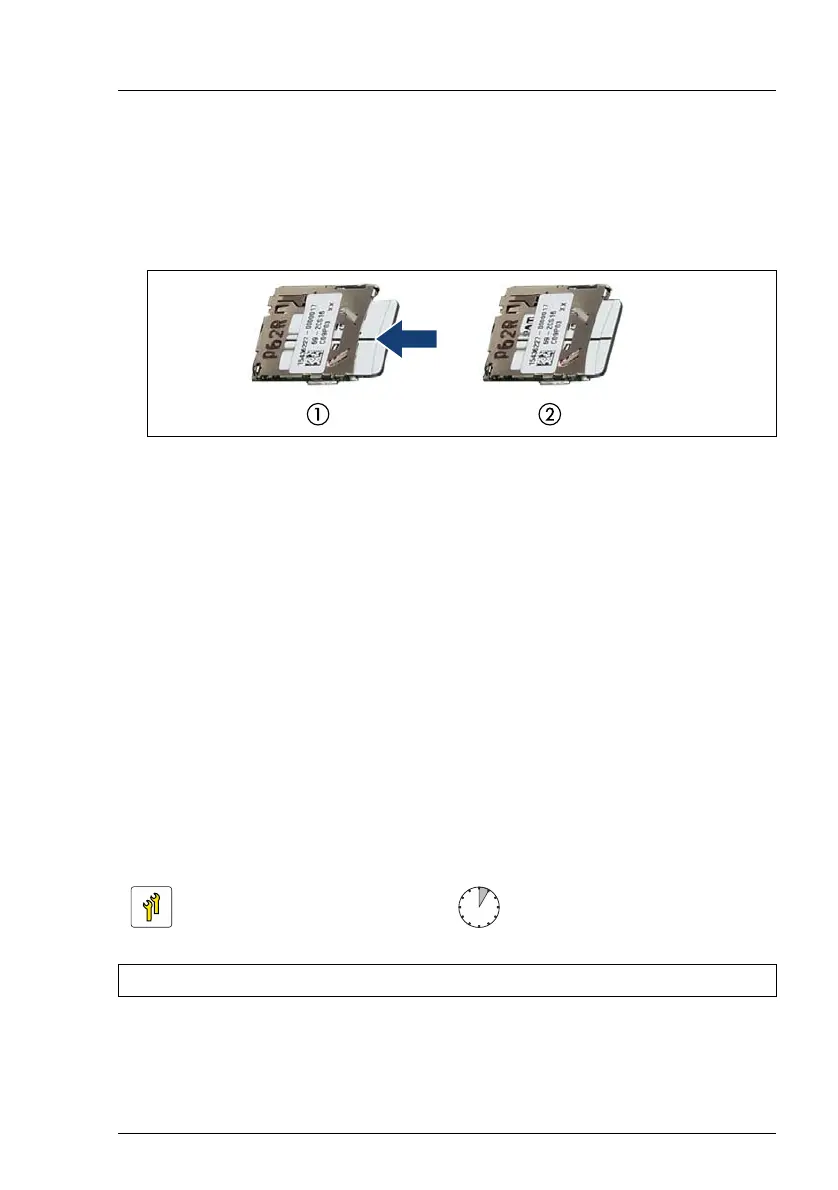

Figure 402: Installing the microSD card
Ê With the label facing up, insert the microSD card into the microSD slot on
the controller (1) until it locks in place (2).
Ê Install the new Dual microSD 64GB Enterprise, see section "Installing the
Dual microSD 64GB Enterprise" on page 524.
16.6.3.3 Concluding steps
Ê If applicable "Installing the air duct" on page 89
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
16.6.4 Replacing the microSD card
16.6.4.1 Preliminary steps
Ê "Locating the defective server" on page 53
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: a pair of side-cutting pliers
