RX2540 M4 Upgrade and Maintenance Manual 147
Hard disk drives (HDD) and solid state drives (SSD)
7.3.4 Configuration with up to 12 HDD modules

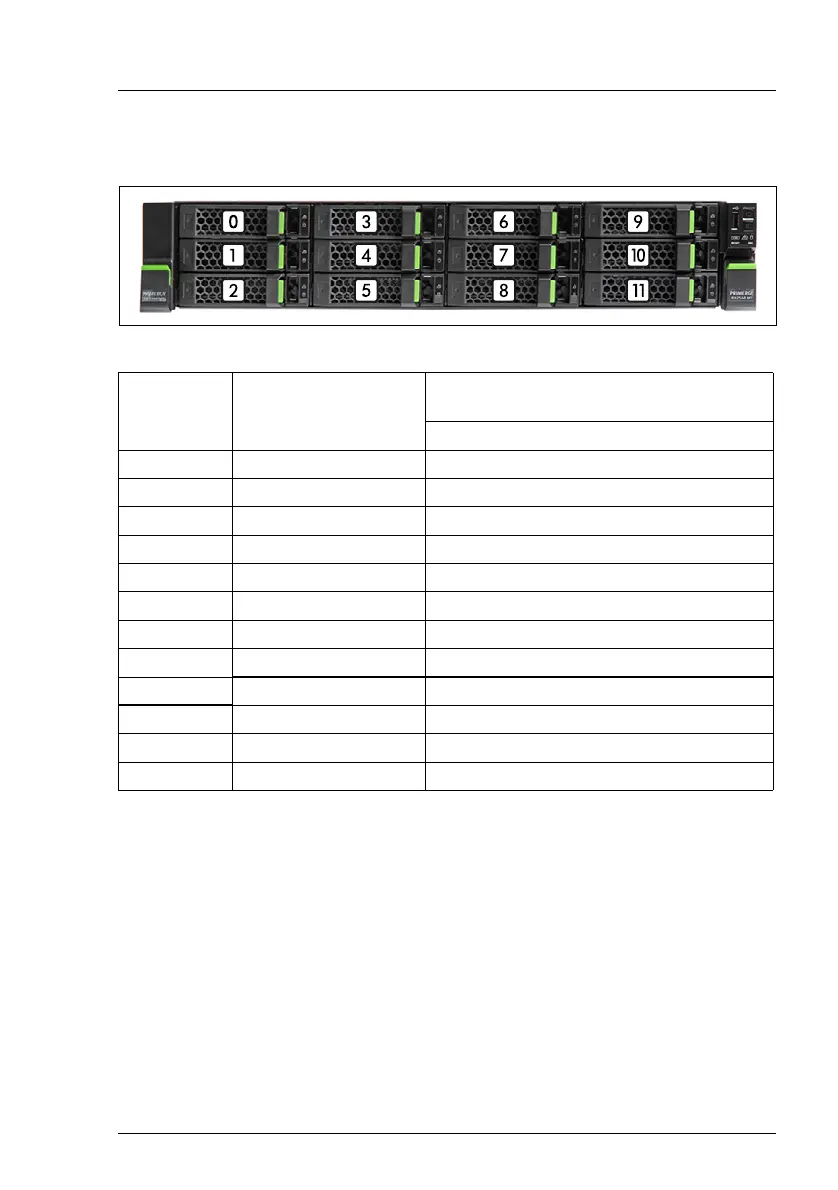

Figure 56: Configuration with up to 12 3.5-inch HDDs
Position Logical drive number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
[8] 8 Vendor Product (8)
[9] 9 Vendor Product (9)
[10] 10 Vendor Product (10)
[11] 11 Vendor Product (11)
