400
Upgrade and Maintenanc
e Manual
RX2540
M4
Accessible drives
13.2.2.2
Removing the OD
D

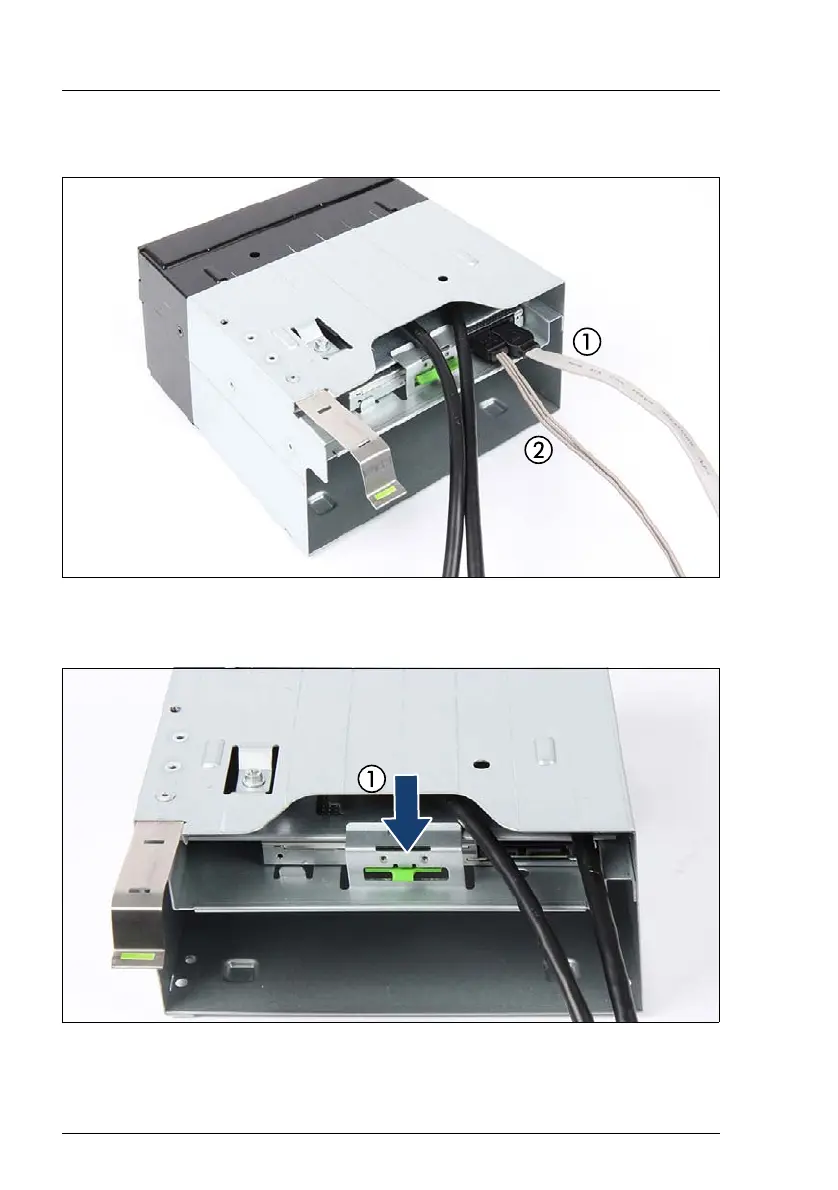

Figure 278: Removing the cables from the ODD
Ê
Disconnect both cables
(1, 2).
Figure 279: Removing the ODD (A)
Ê
Unlock the ODD latch (1).
399
