RX2540 M4 Upgrade and Maintenance Manual 167
Hard disk drives (HDD) and solid state drives (SSD)

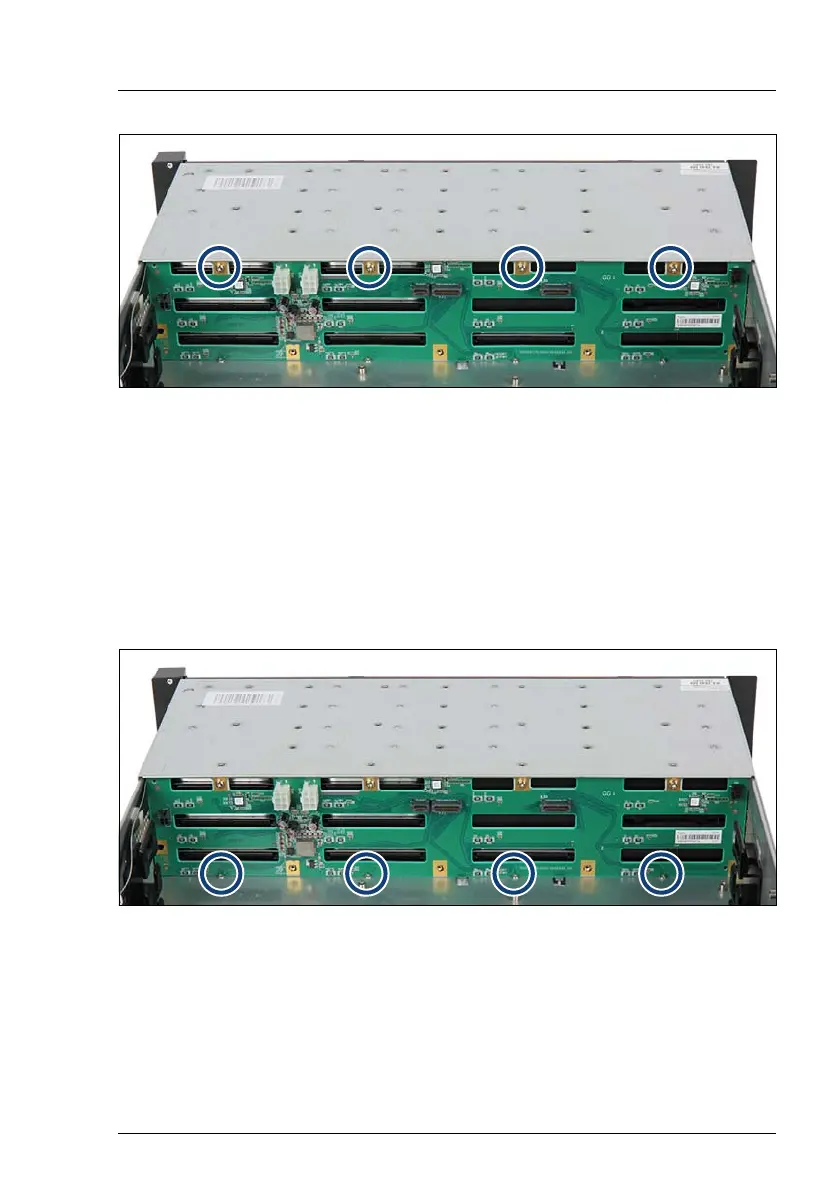

Figure 77: Removing the 12x 3.5-inch HDD backplane
Ê Remove the four screws (see circles).
I For the first time remove also three screws on the lower edge of the
HDD backplane. These screws are only used as a transportation
lock.
Ê Take out the HDD backplane at a slight angle (45°).
7.3.10.4 Installing the new 12x 3.5-inch HDD backplane
Figure 78: Installing the 12x 3.5-inch HDD backplane (A)
Ê Position the HDD backplane behind the four stampings into the chassis (see
circles).
