398 Upgrade and Maintenance Manual RX2540 M4

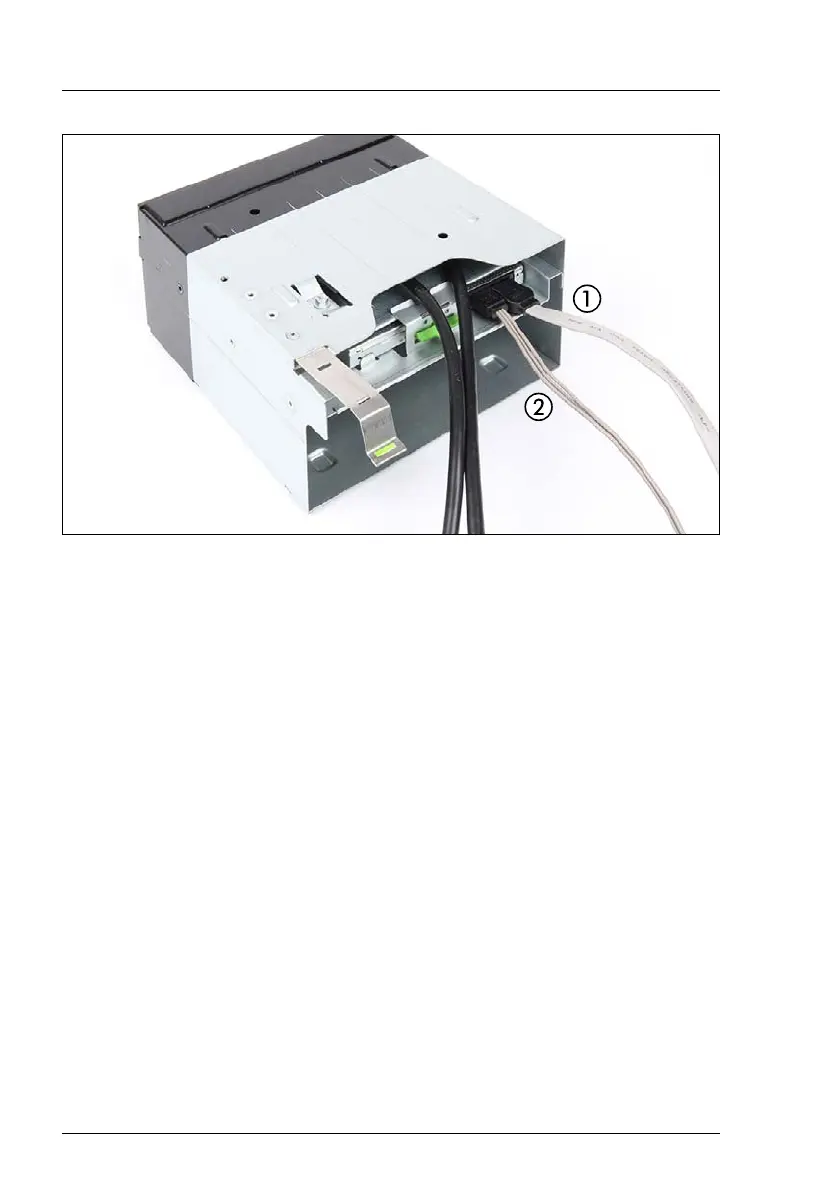

Figure 277: Installing the ODD (C)
Ê Connect the cables to the ODD:
13.2.1.4 Concluding steps
Ê "Installing the front panel cage" on page 445
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Resuming BitLocker functionality" on page 112
1 ODD SATA cable
2 ODD power cable
