202 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)
Ê Slide the SAS expander board holder towards (2) and lift upward.
7.4.11.3 Removing the defective SAS expander board

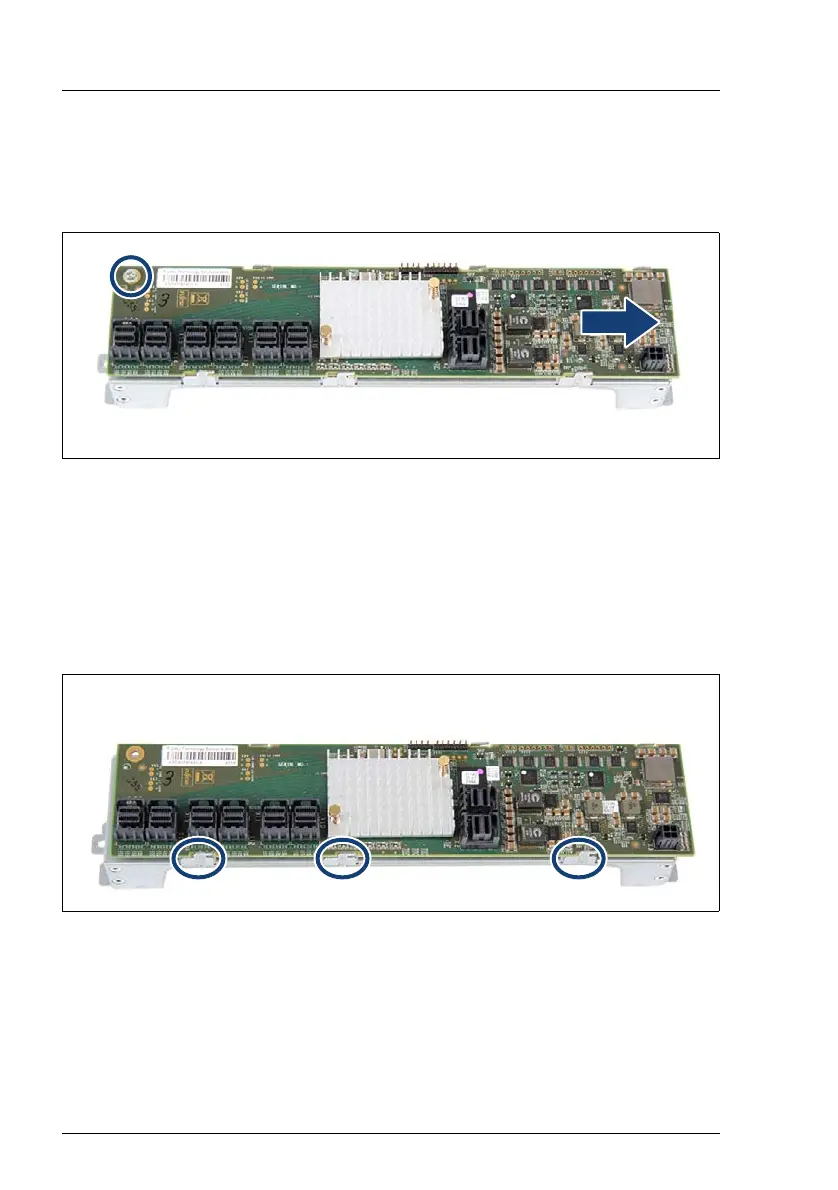

Figure 114: Removing the SAS expander board
Ê Remove one screw (see circle).
Ê Push the SAS expander board in the direction of the arrow.
Ê Take off the SAS expander board from the SAS expander board holder.
7.4.11.4 Installing the new SAS expander board
Figure 115: Positioning the SAS expander board
Ê Position the SAS expander board on the SAS expander board holder (see
circles).
