268 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.6 Handling slot covers on the riser card
holder
9.6.1 Installing the slot cover

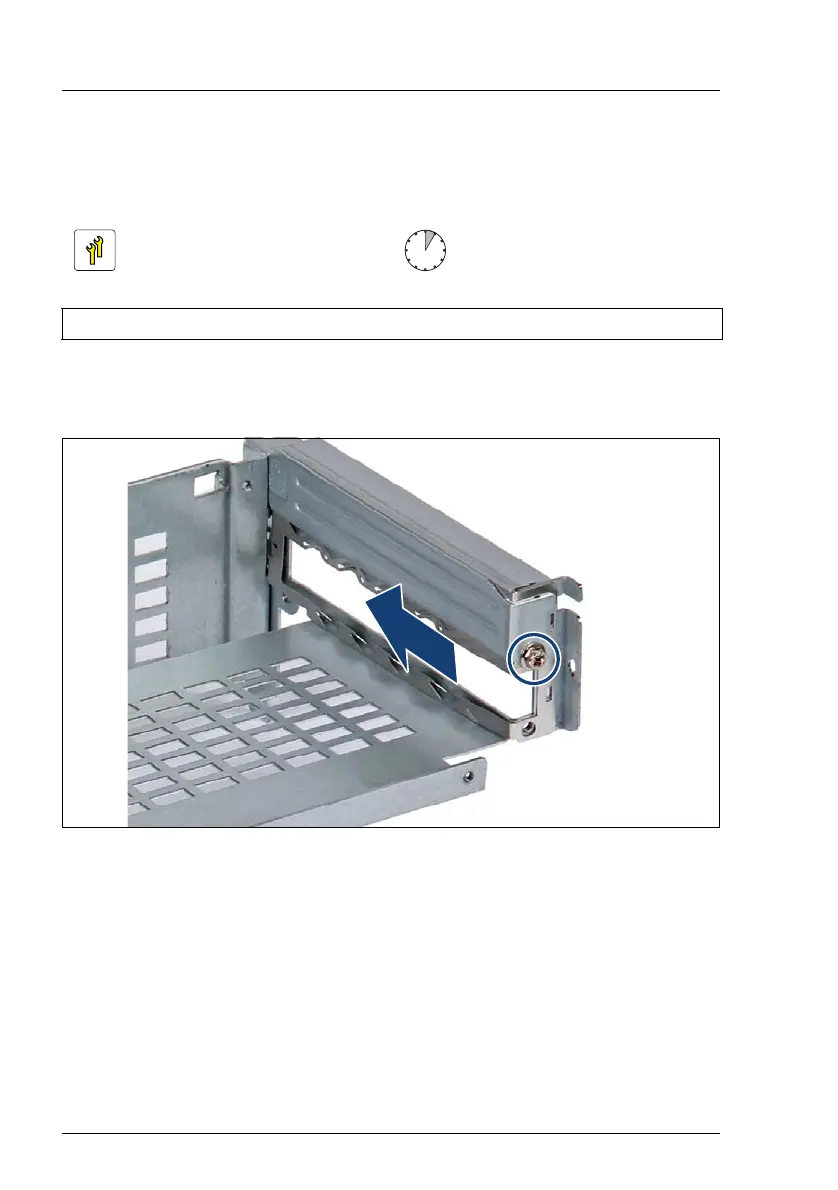

Figure 175: Installing the slot cover
Ê Insert the slot cover.
V CAUTION!
Take care that the EMC spring remains in its place.
Ê Fasten the slot cover with one screw (see circle).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver / hexagon screw driver 5 mm
