RX2540 M4 Upgrade and Maintenance Manual 385

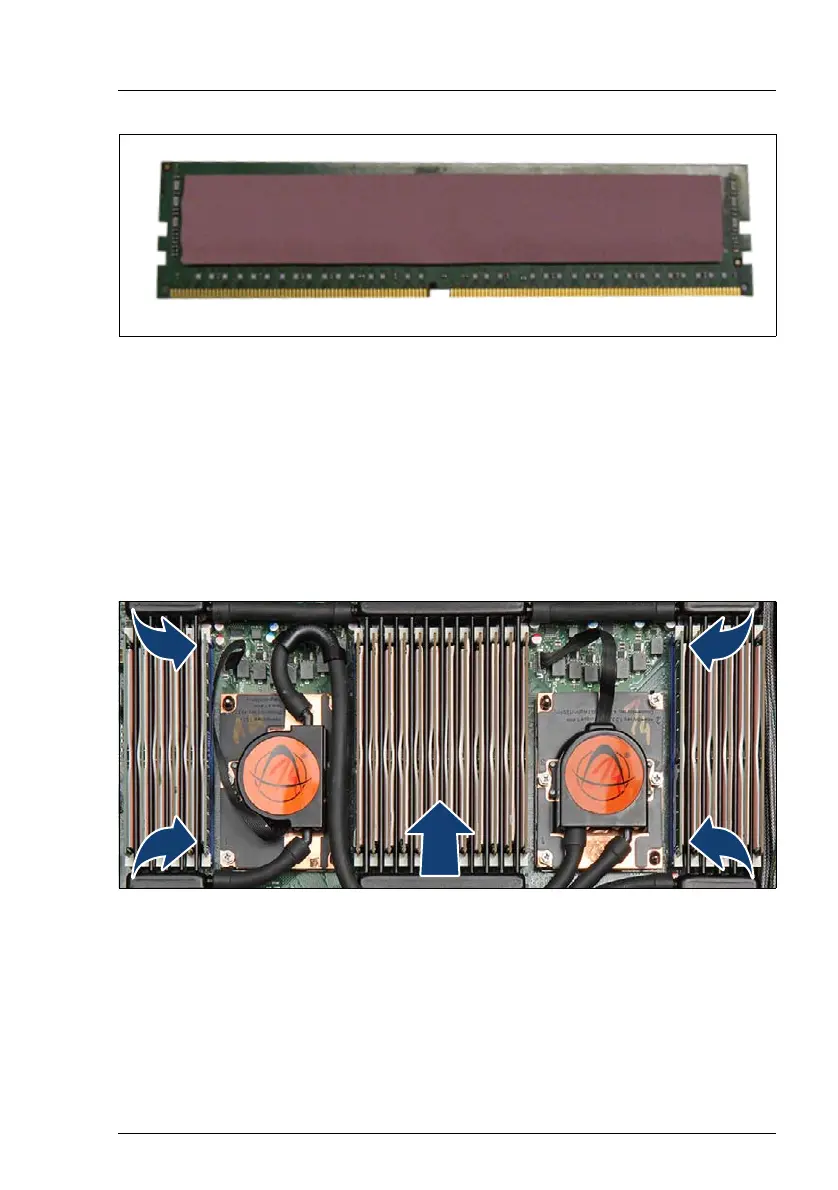

Figure 266: Prepared memory module
Ê Stick the adhesive memory pad(s) on one or two sides of the memory
modules, see section "Adhesive memory pads" on page 367.
Ê Choose the memory slot according to the configuration rules in "Basic
information" on page 328.
12.4.1.3 Installing a memory module
Ê Pull up the required memory cover(s), see figure 249 on page 370.
Figure 267: Opening the memory cooling units
Ê Open the required memory cooling unit:
– Swing the left/right memory cooling unit(s) in the direction of the pump
(see arrows).
– Swing the central memory cooling unit in the direction of the arrow.
