RX2540 M4 Upgrade and Maintenance Manual 213
Hard disk drives (HDD) and solid state drives (SSD)
7.5.1.5 Installing the rear backplane
I Installing the backplane is the same for all three types.

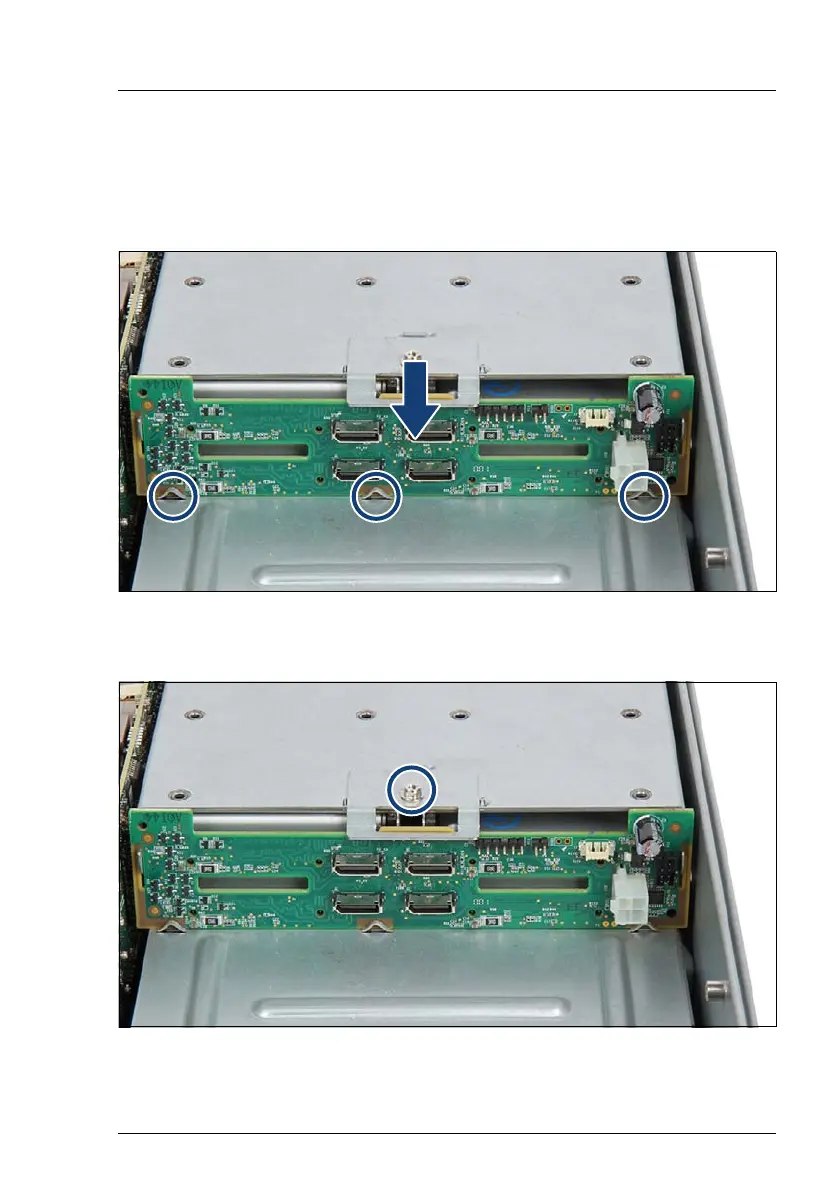

Figure 127: Example: Installing the 4x 2.5-inch rear PCIe SSD backplane type 1 (A)
Ê Position the backplane behind the three hooks (see circles).
Figure 128: Example: Installing the 4x 2.5-inch rear PCIe SSD backplane type 1 (B)
Ê Position the clip and fasten it with one screw (see circle).
