250 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.4.2 Removing the OCP module
9.4.2.1 Preliminary steps
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Ê If applicable, remove the riser module 1, see section "Handling riser
modules" on page 71.
9.4.2.2 Removing the OCP module

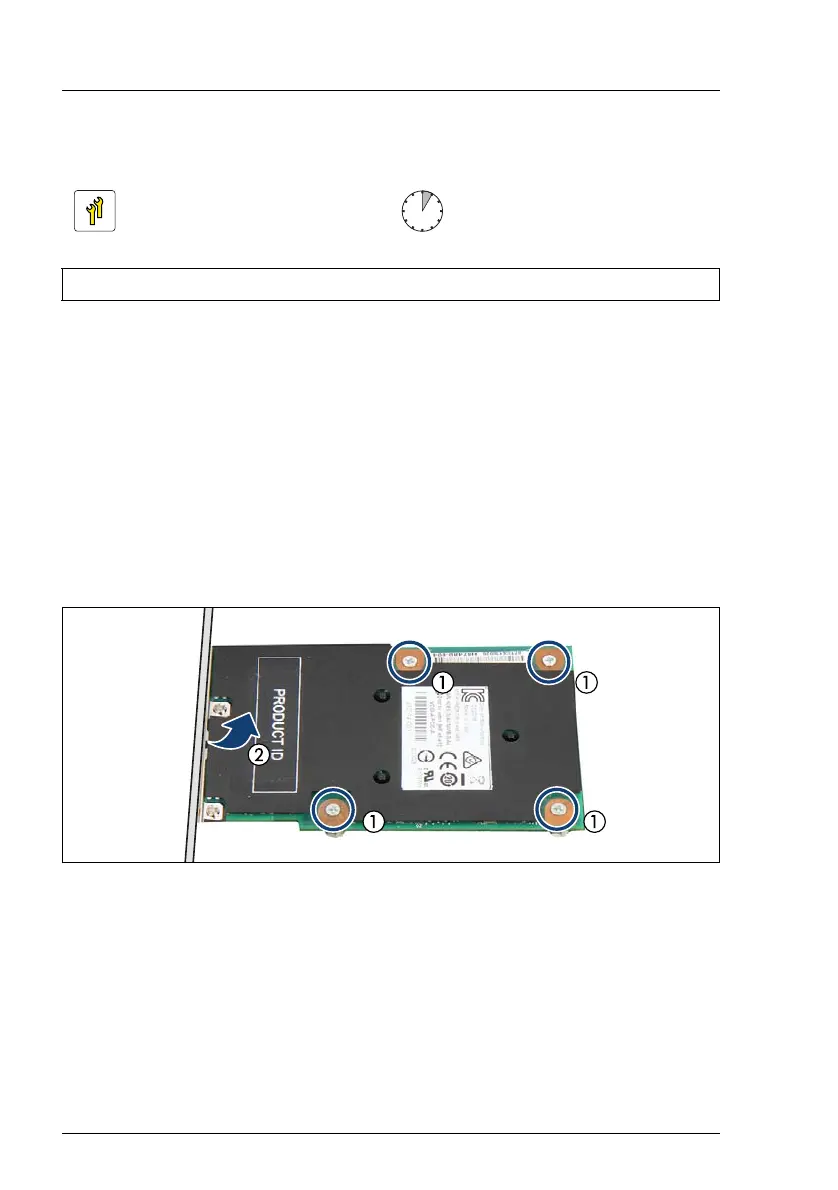

Figure 162: Removing the OCP module
Ê Remove the four screws (1).
I When replacing an OCP module: keep the screws for installing the
new OCP module.
Ê Remove the OCP module (2).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: Phillips PH1 / (+) No. 1 screw driver
