RX2540 M4 Upgrade and Maintenance Manual 409

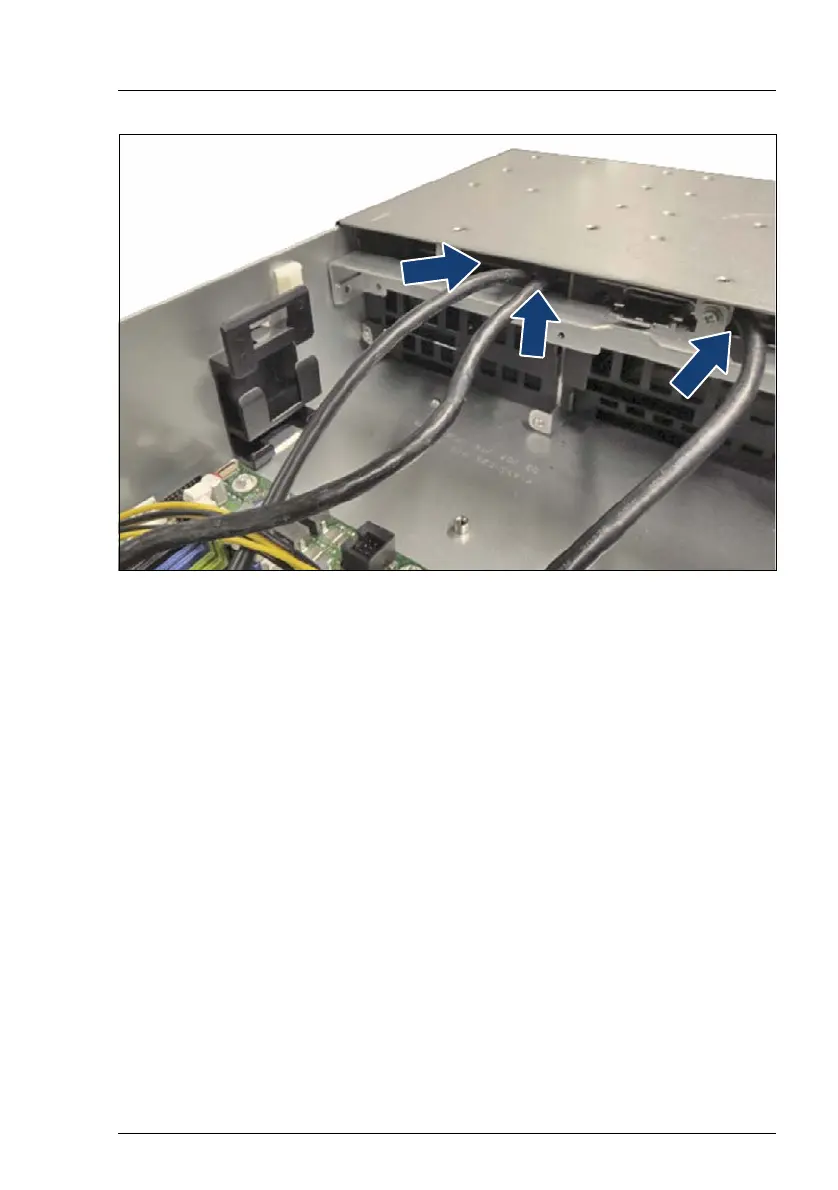

Figure 290: Installing the front panel module (B)
Ê Run the cables through the openings as shown.
Ê Connect the cables to the system board:
I For the cable plan, see chapter "Appendix B" on page 573.
13.3.1.4 Concluding steps
Ê "Installing the front panel module" on page 471
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Resuming BitLocker functionality" on page 112
ODD power cable
ODD SATA cable
