254 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.5.1.2 Removing the slot cover

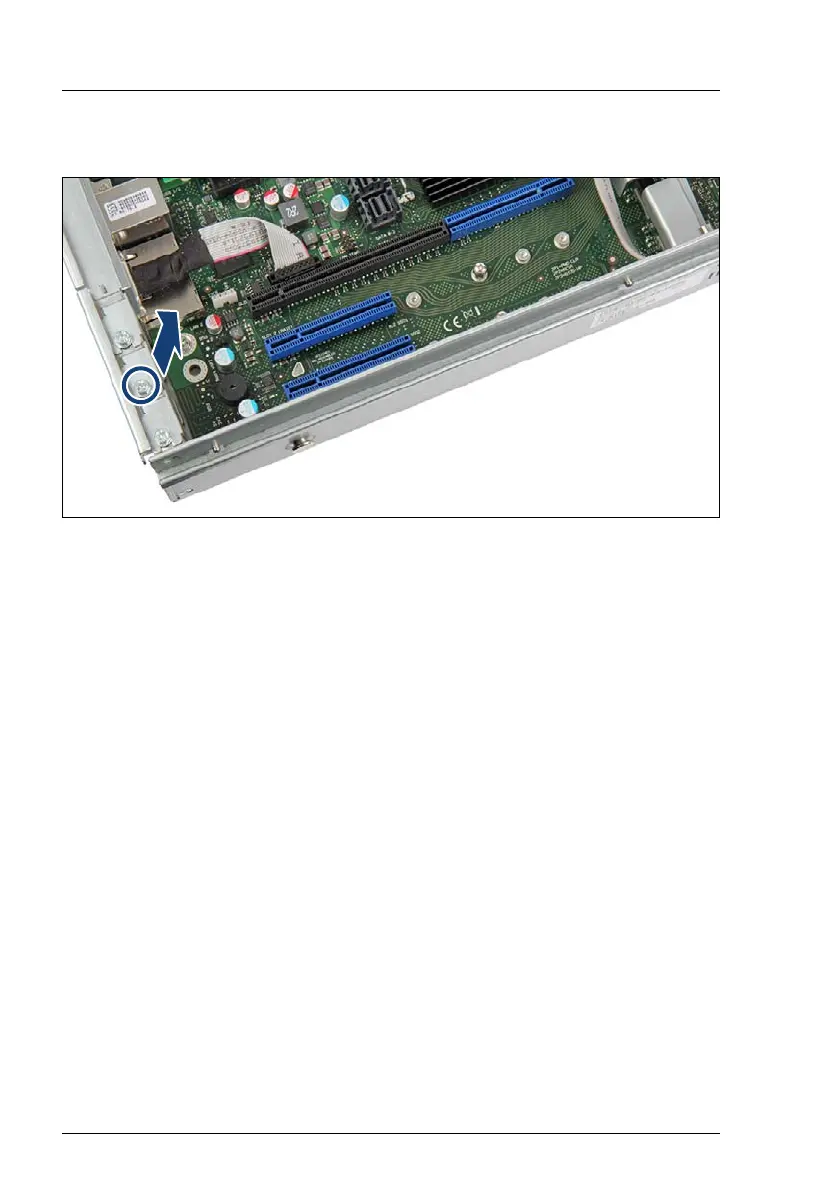

Figure 164: Removing the slot cover
Ê Remove the screw (see circle).
Ê Remove the slot cover (see arrow).
V CAUTION!
Keep the slot cover for future use. Always replace slot covers into
unused PCI slot openings to comply with applicable EMC regulations
and satisfy cooling requirements
9.5.1.3 Installing an expansion card
Ê Remove the expansion card from its protective packaging.
I For further instructions regarding controller settings, see the
accompanying documentation.
Ê If applicable, install the slot bracket to the expansion card, see section
"Installing a slot bracket" on page 239.
Ê If applicable, connect internal cables to the expansion card.
I For the cable plan, see chapter "Appendix B" on page 573.
