RX2540 M4 Upgrade and Maintenance Manual 255
Expansion cards and backup units

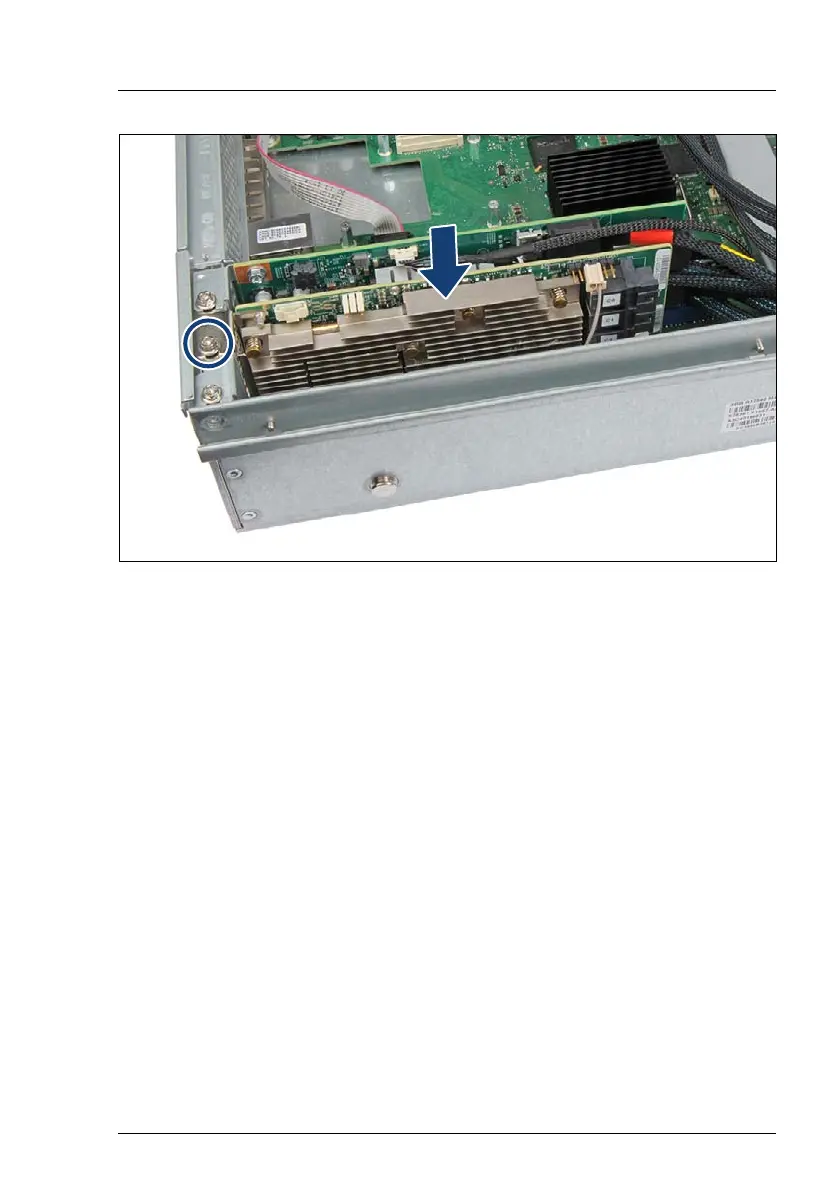

Figure 165: Installing the expansion card
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
Ê Fasten the expansion card with the screw (see circle).
Ê If applicable, install SFP+ transceiver modules into the new expansion card,
see section "Installing SFP+ transceiver modules" on page 241.
Ê If applicable, connect an FBU cable to the expansion card, see section
"Installing the new TFM" on page 311.
