RX2540 M4 Upgrade and Maintenance Manual 181
Hard disk drives (HDD) and solid state drives (SSD)
7.4.5 Configuration with 4x 2.5-inch SAS HDD/SSDs or
PCIe SSDs accessible from the rear side
I Two configurations are available:
– 4x 2.5-inch SAS HDD/SSDs connected to a SAS3.0 controller
– 4x PCIe SSD SFFs connected to a Retimer controller.

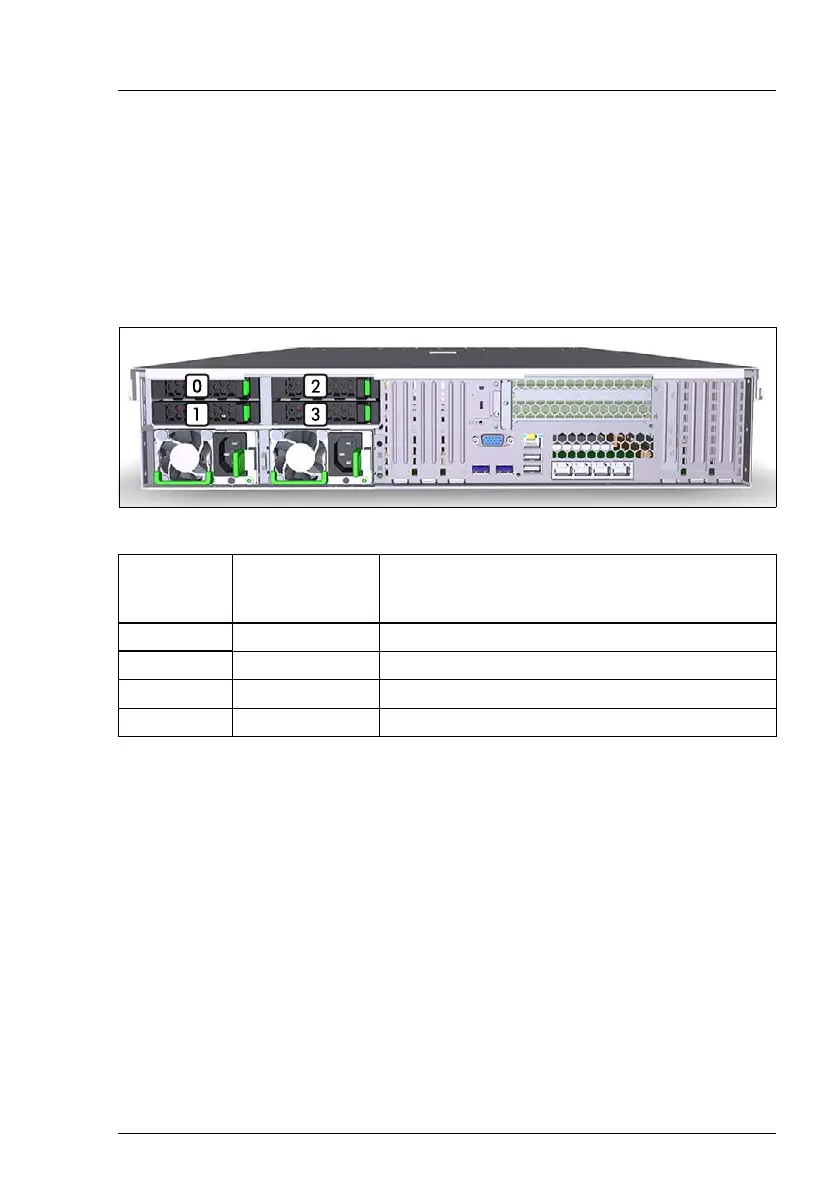

Figure 96: 4x 2.5-inch SAS HDD/SSDs or PCIe SSDs rear
Position Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller
[0] 0 Vendor Product (1:0)
[1] 1 Vendor Product (1:1)
[2] 2 Vendor Product (1:2)
[3] 3 Vendor Product (1:3)
