368 Upgrade and Maintenance Manual RX2540 M4
Memory spacer

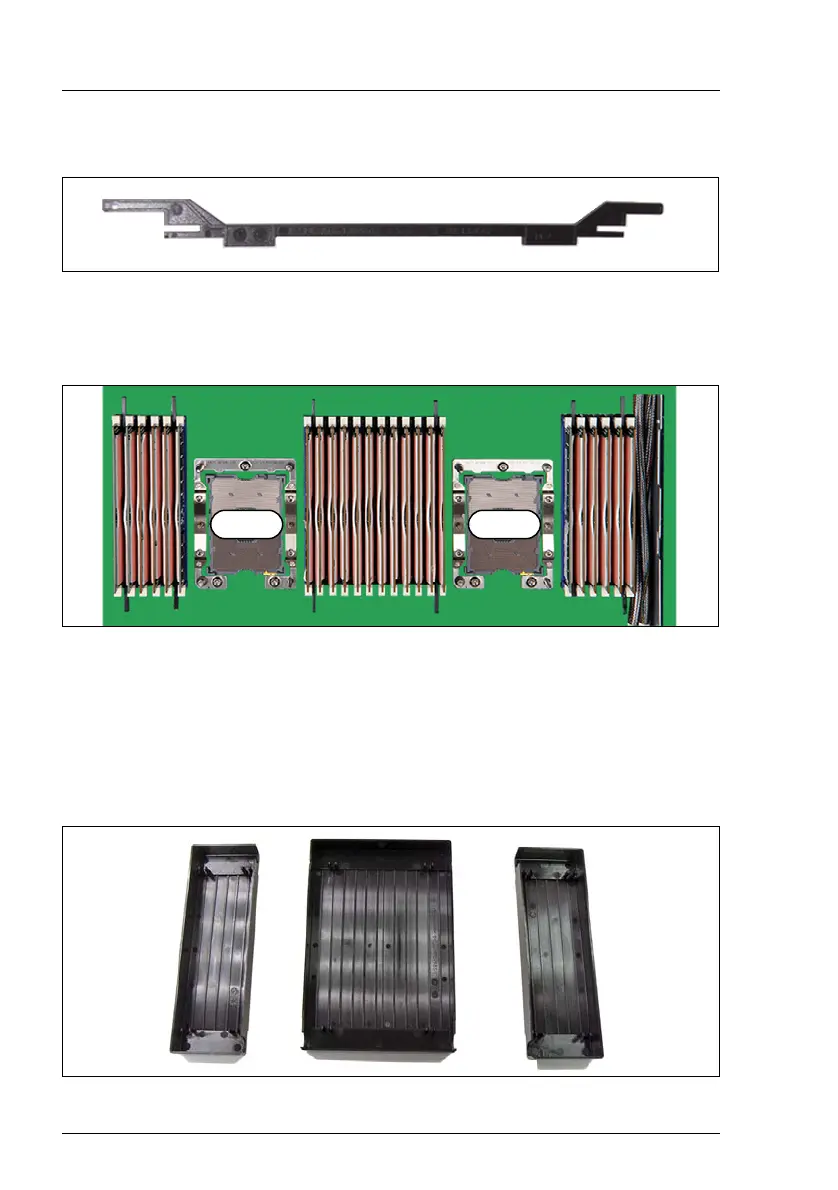

Figure 246: Memory spacer
The memory spacers are necessary to adjust the memory cooling units at the
right position.
Figure 247: Positions of the memory spacers
The memory spacers must be installed between the following memory slots:
1J and 2J, 1G and 2G, 2K and 1K, 1A and 2A, 2D and 1D, 2F and 1F, see also
figure 242 on page 364.
Memory covers
Figure 248: Memory covers - bottom view
