RX2540 M4 Upgrade and Maintenance Manual 505
System board and components

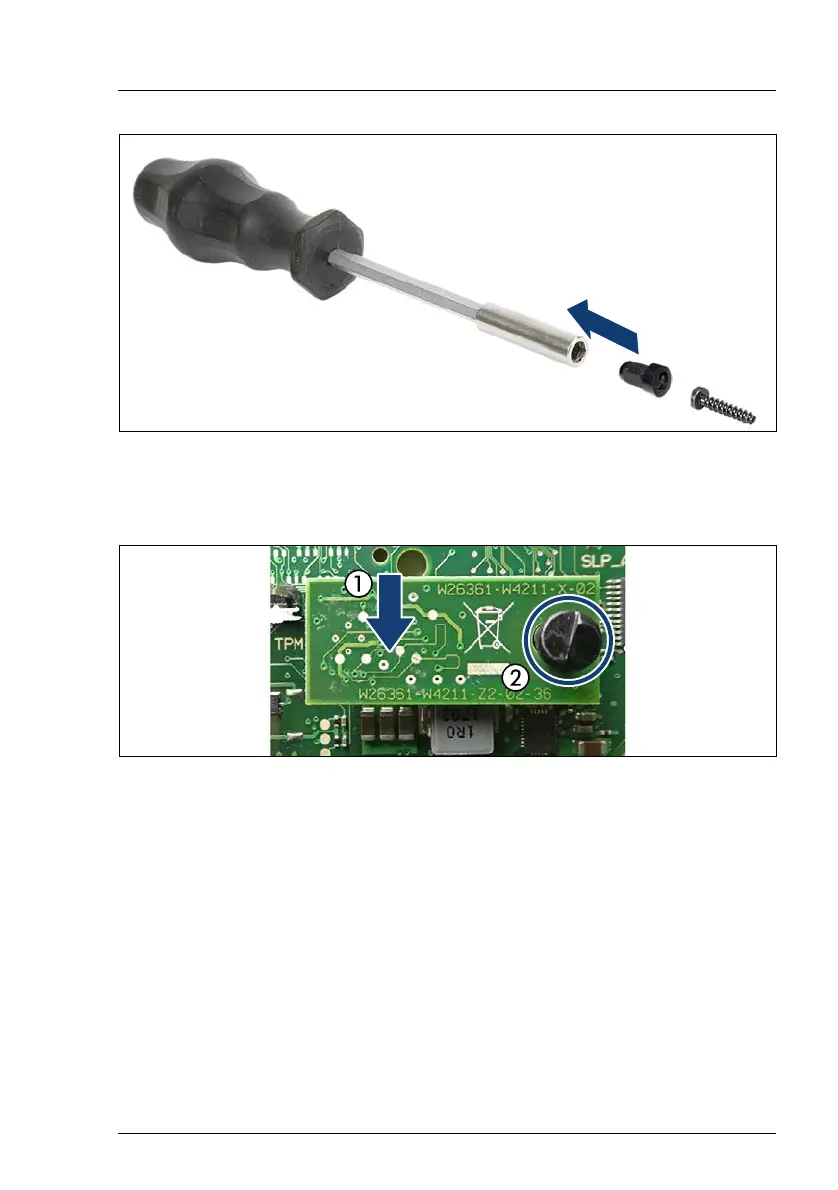

Figure 376: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japan) to a bit screw
driver.
Figure 377: Installing the TPM
Ê Connect the TPM to the system board (1).
Ê Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japan) (2).
V CAUTION!
Do not fasten the screw too firmly. Stop it by extent where the head
of the screw lightly touches the TPM (torque value of 0.6 Nm, the
description of this torque value doesn't apply to Japan).
