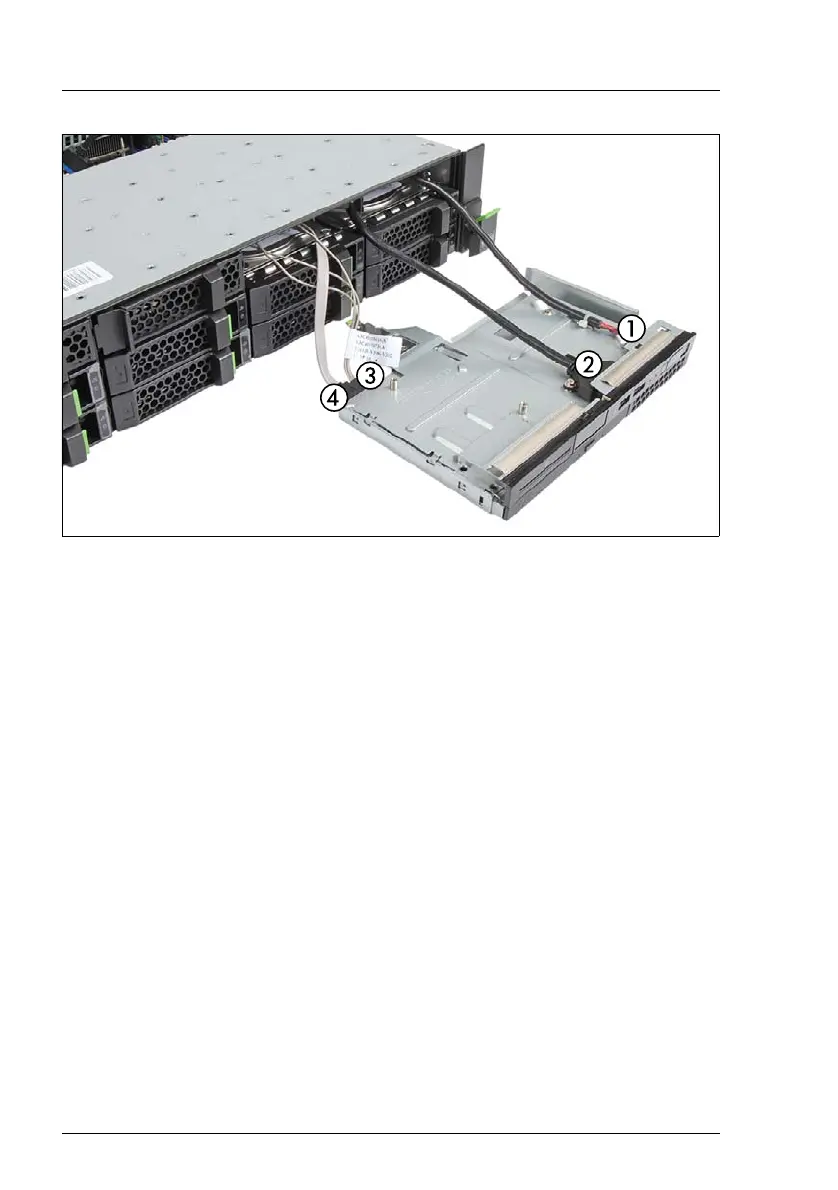

Figure 352: Installing the front panel module
Ê Connect the following cables to the front panel module:
Ê Insert the front panel module.
1 Front panel cable
2 If applicable, front USB3.0 cable
3 Power ODD cable
4 Data ODD cable
If applicable, Front VGA cable
