142 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)

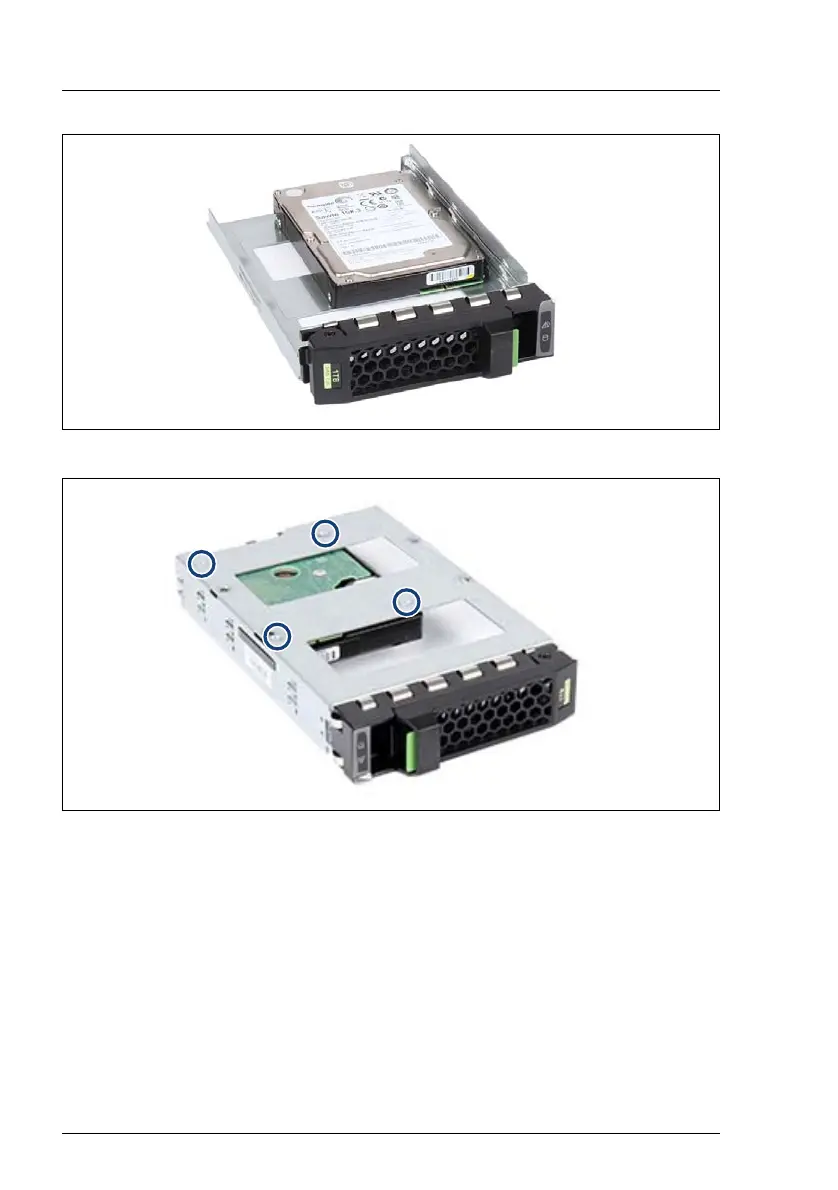

Figure 50: Installing the 2.5-inch HDD/SSD in the 3.5-inch installation frame (A)
Figure 51: Installing the 2.5-inch HDD/SSD in the 3.5-inch installation frame (B)
Ê Fasten the 2.5-inch HDD/SSD with four screws.
Removing a 2.5-inch HDD/SSD from a 3.5-inch installation frame
Ê Please proceed in reversed order.
