RX2540 M4 Upgrade and Maintenance Manual 243
Expansion cards and backup units

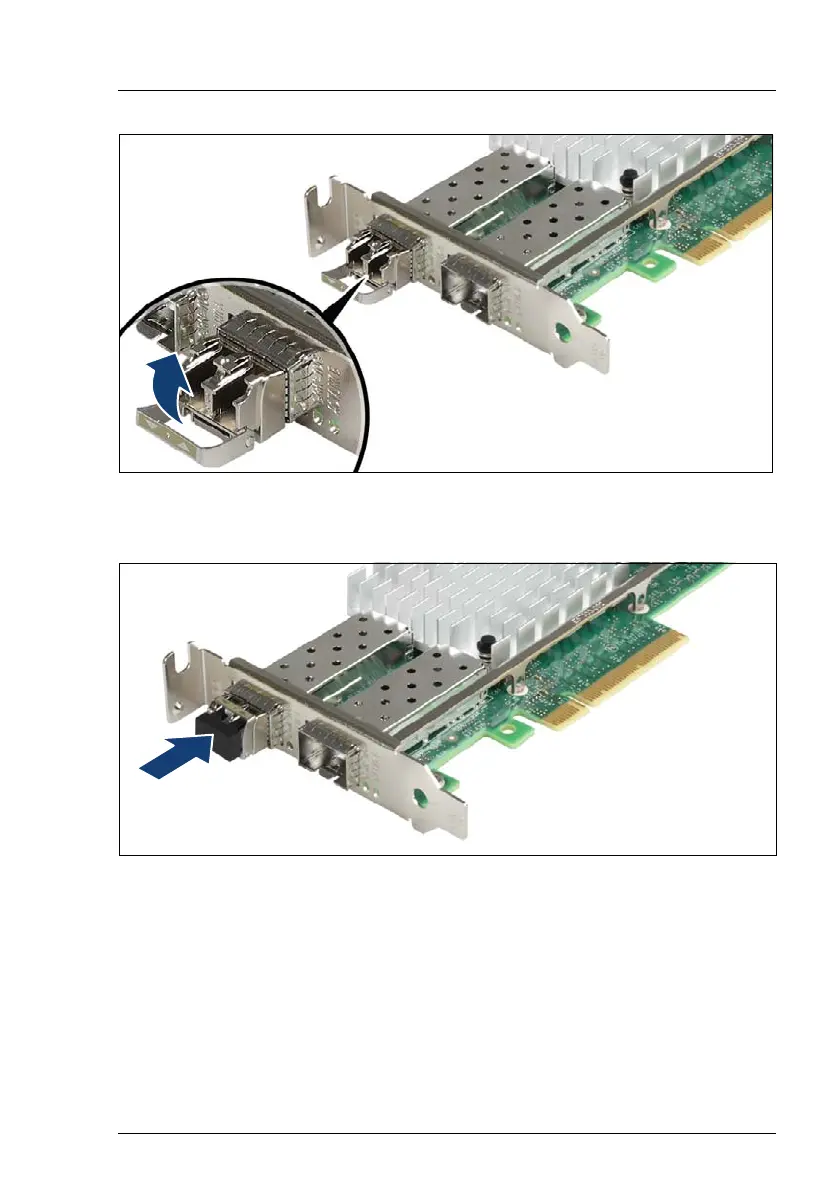

Figure 152: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 153: Installing the protective cap
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective cap to the SFP+ transceiver module.
