276 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units

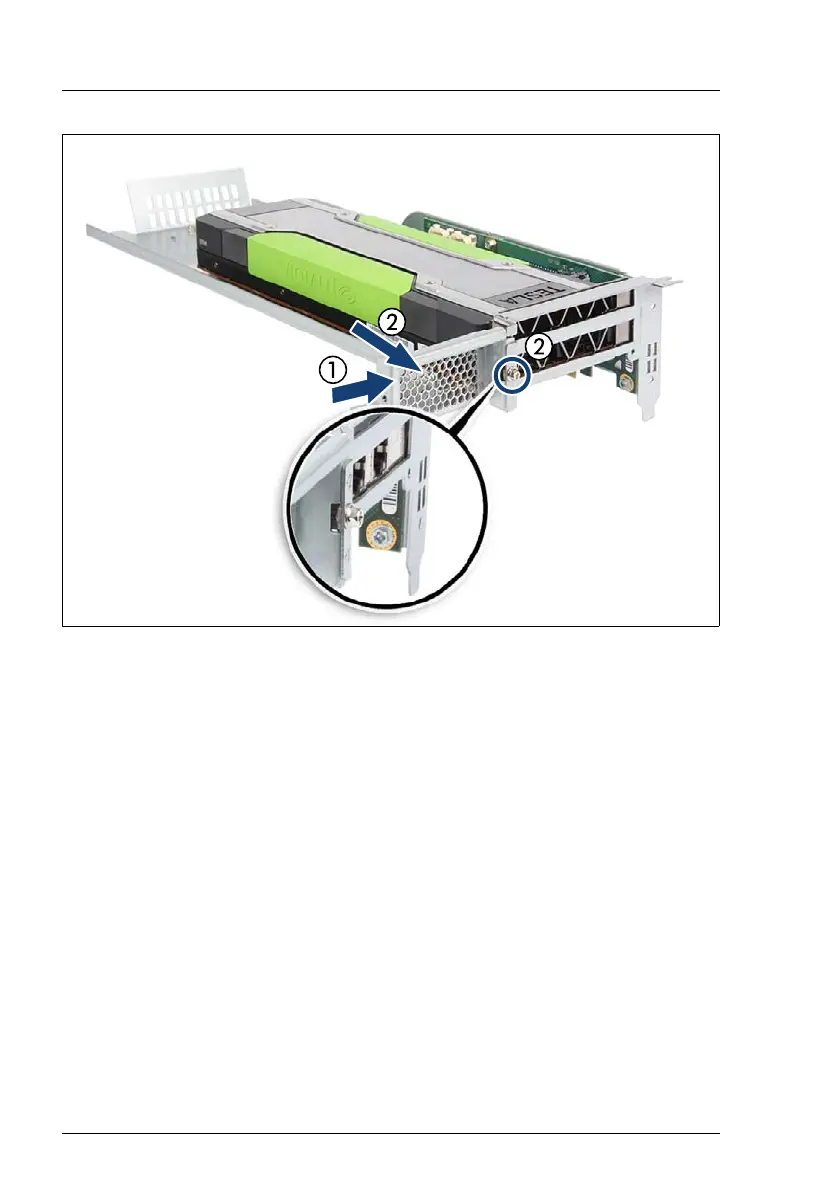

Figure 184: Example: Installing the air grid extension to riser module 2 - GPGPU
Ê Position the air grid extension (1).
I Ensure that the bracket of the riser card holder is positioned outside
the air grid extension (see close-up).
Ê Fasten the air grid extension with two screws (2).
