426 Upgrade and Maintenance Manual RX2540 M4

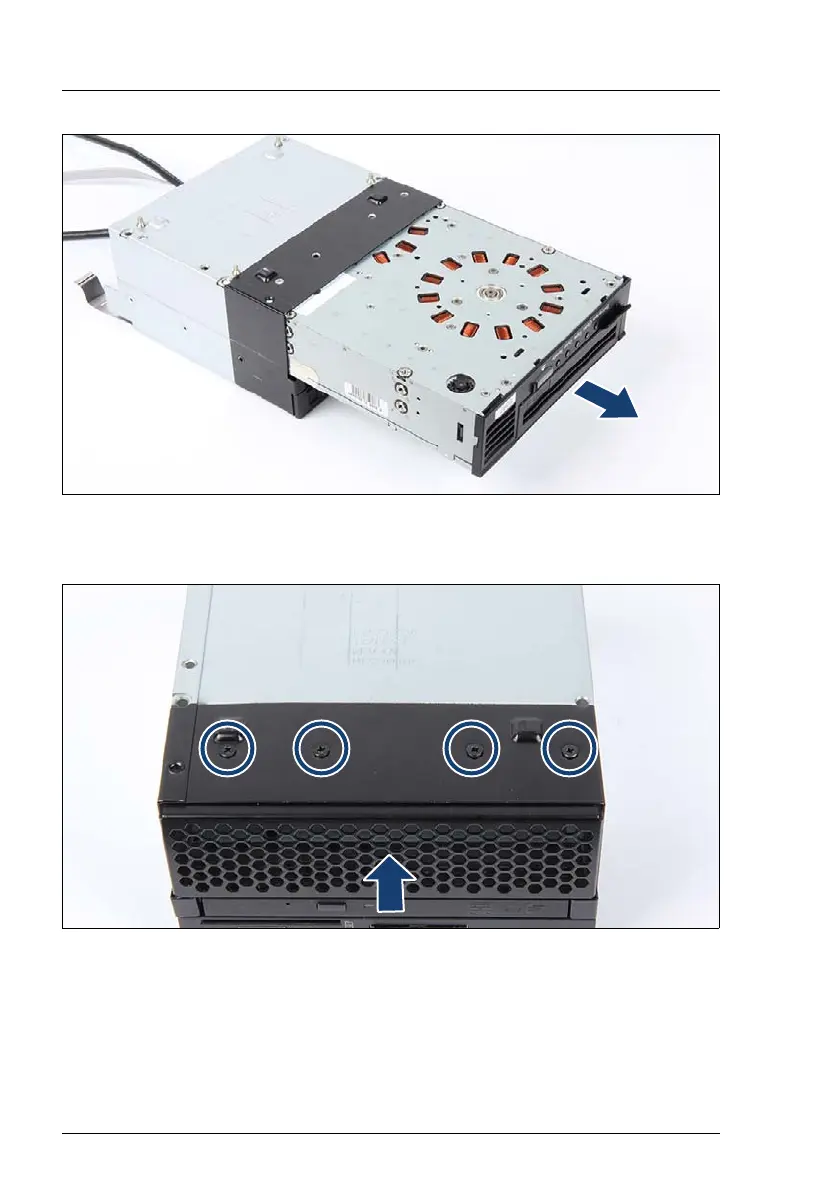

Figure 308: Removing the LTO drive
Ê Pull out the LTO drive.
Figure 309: Installing ODD latch to the front cage
Ê Insert the air grid.
Ê Fasten the air grid with 4 screws.
Ê Install the front panel cage, see section "Installing the front panel cage" on
page 445.
