440 Upgrade and Maintenance Manual RX2540 M4

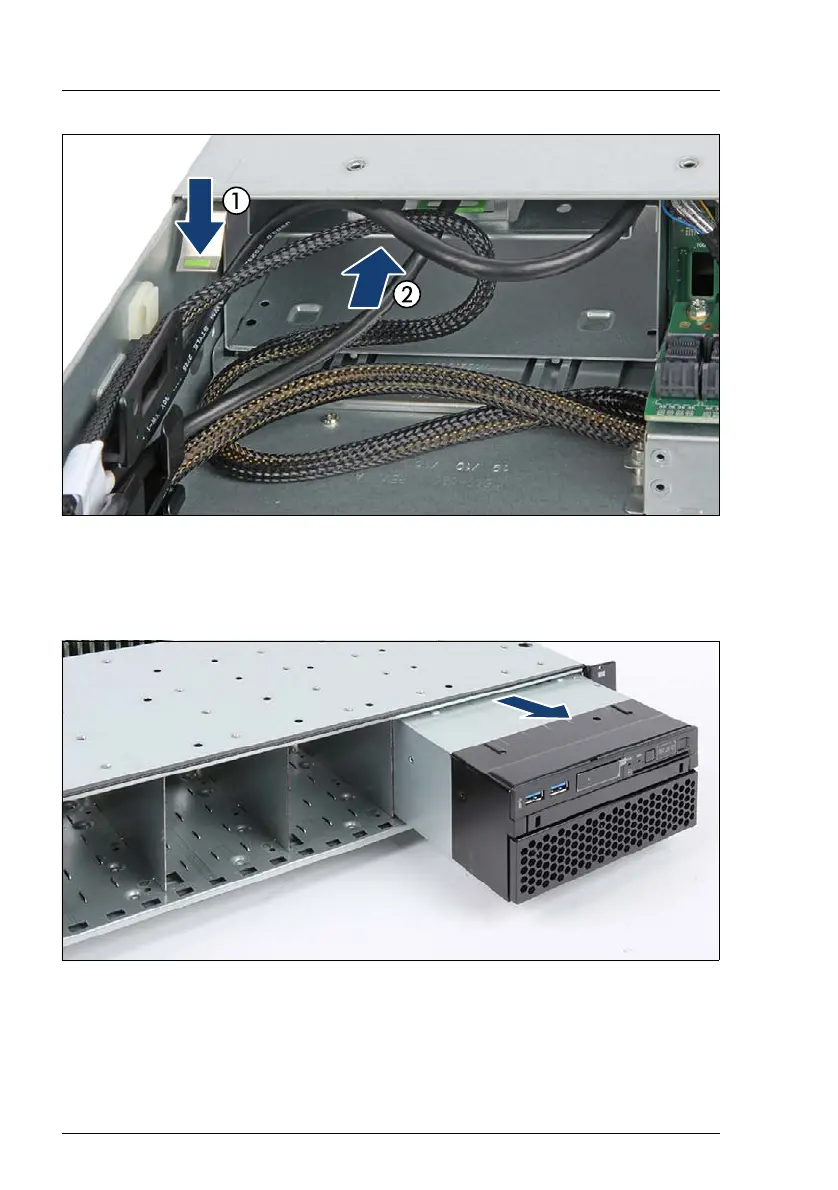

Figure 319: Removing the front panel cage (A)
Ê Press down the lever to unlock the front panel cage (1).
Ê Push the front panel cage in the direction of the arrow (2).
Figure 320: Removing the front panel cage (B)
Ê Remove the front panel cage out of its bay.
