Fujitsu PRIMERGY RX2540 M4

538 Upgrade and Maintenance Manual RX2540 M4
System board and components

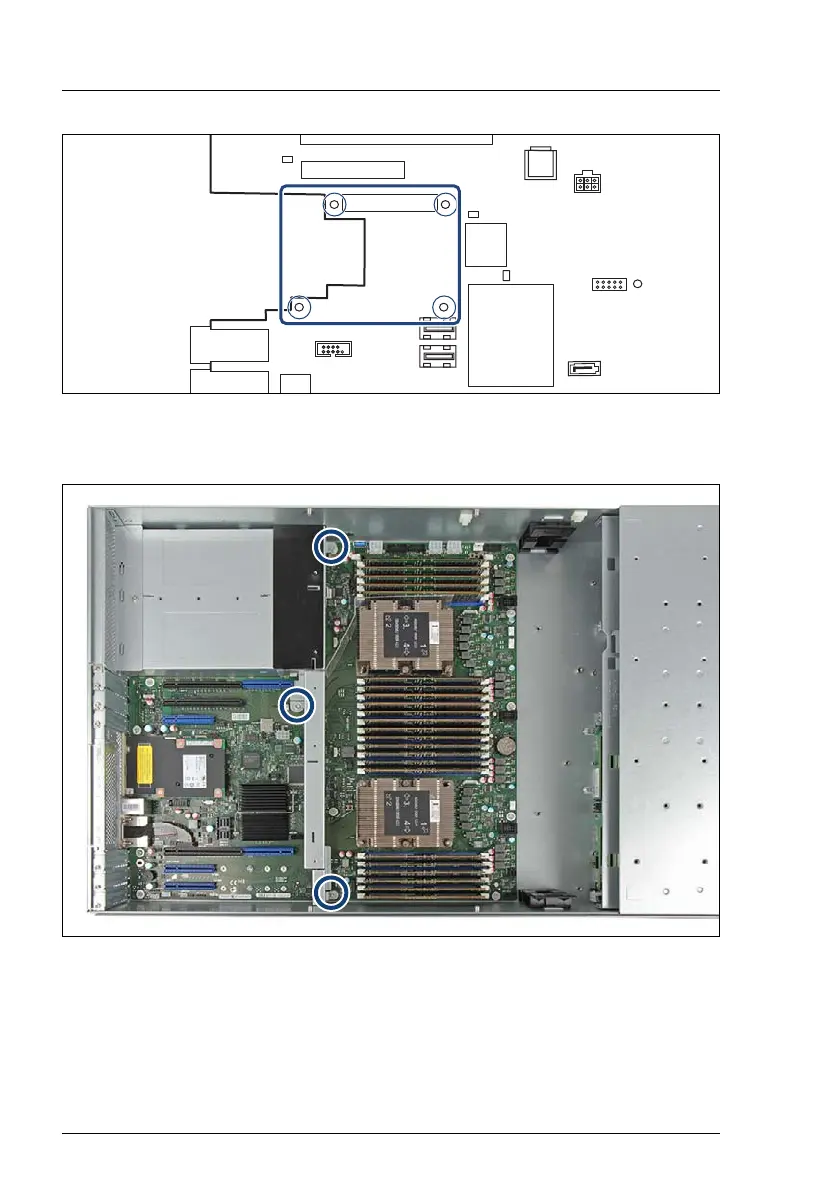

Figure 403: Bolts for OCP modules
Ê Remove the four OCP bolts (see circles).
Figure 404: Removing the crossbar
Ê Remove the three screws of the crossbar (see circles).
Ê Remove the crossbar.
iRMC
S5
connectors
TPM
LAN 1
SATA
0-3
COM 1
SATA
4-7
SATA
ODD
Slot OCP module
Micro
SD
LAN M
USB3.0 1/2
LAN 1/ M
Slot 8 (CPU2)
Slot 7 (CPU2)
PWR4
VROC
