548 Upgrade and Maintenance Manual RX2540 M4
Server with liquid cooling (LC)

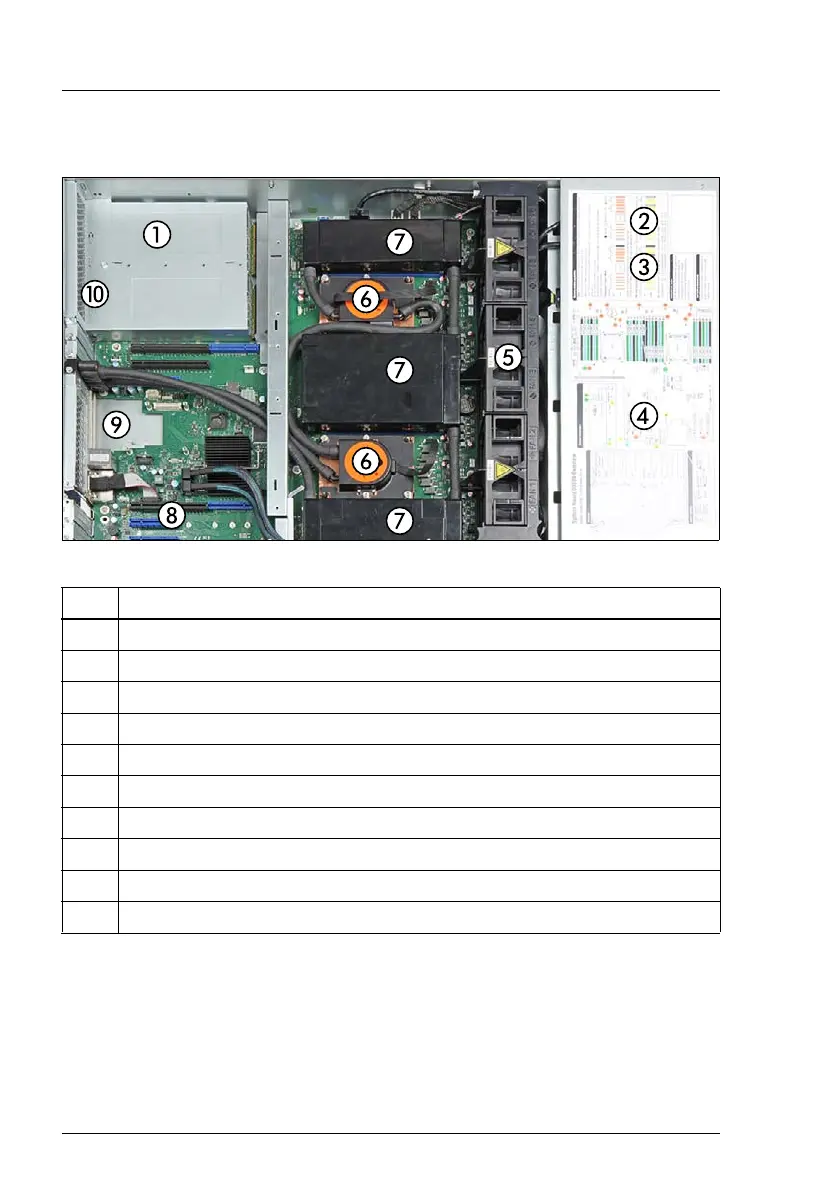

Figure 413: PRIMERGY RX2540 M4 interior (example: 2.5-inch HDD model)
*
)
The OCP module is an option.
Pos. Component
1 Up to 2 PSUs / dummy cover
2 Front panel module / front VGA (option) / dummy cover
3 ODD (option) / dummy cover
4 Up to 24x 2.5-inch HDDs / dummy modules
5 Fan modules
6 CPUs with LC
7 Main memory with memory covers
8PCI slots
9 Location for the OCP module *
10 PCIe SSD rear
To Next Page
