76 Upgrade and Maintenance Manual RX2540 M4
Basic hardware procedures

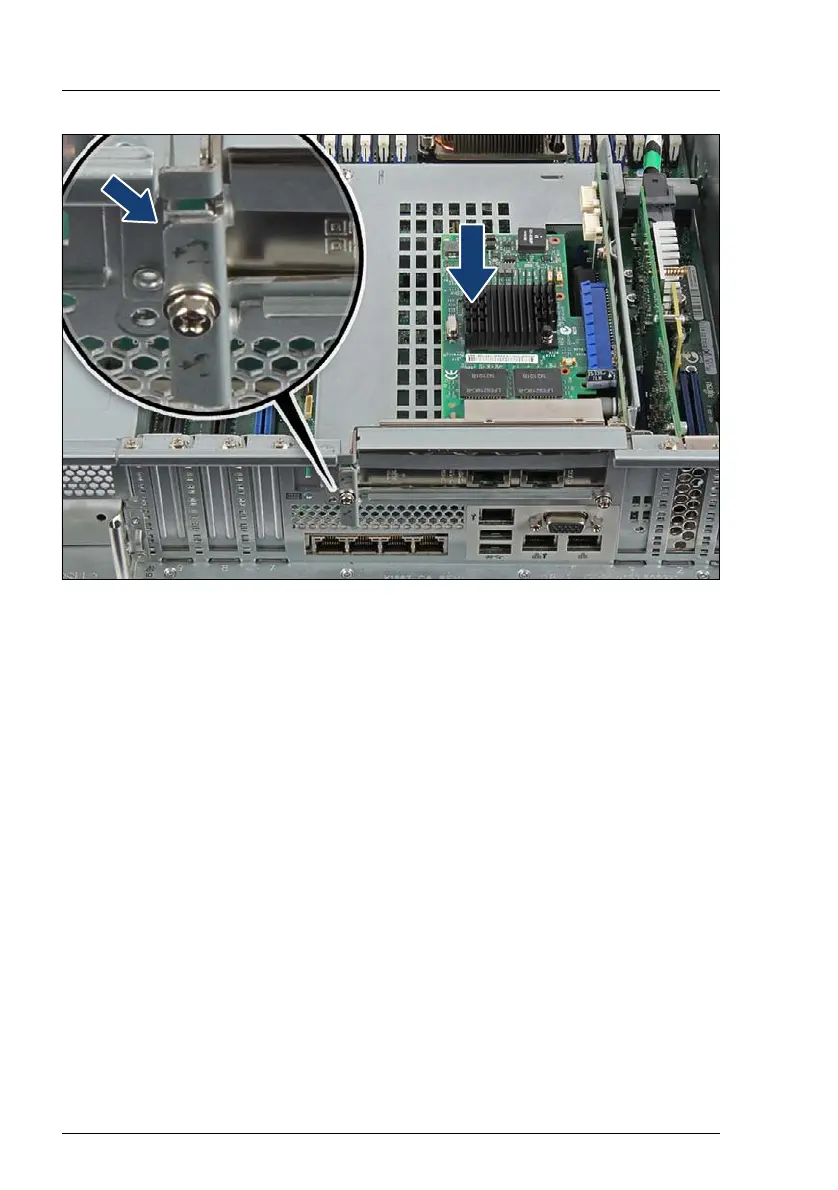

Figure 20: Installing the riser module 1 (A)
Ê Insert the riser module.
I Ensure that the riser module engages properly in the recesses (see
figure 19 on page 75).
Ensure that the bracket of the riser card holder is positioned outside
the chassis (see close-up).
Ê Carefully push down the riser module until the contacts of the riser card are
fully seated in the PCIe socket.
