RX2540 M4 Upgrade and Maintenance Manual 87
Basic hardware procedures

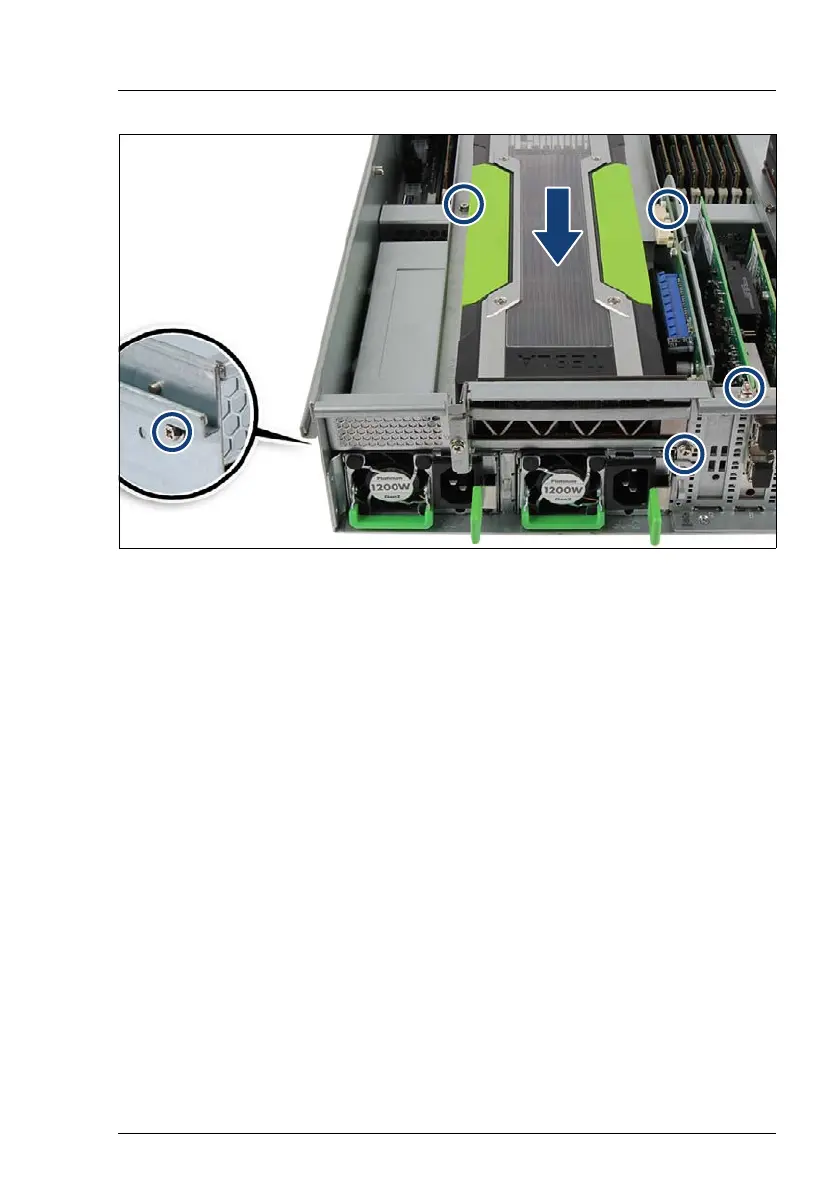

Figure 31: Installing the riser module 2
Ê Insert the completely prepared riser module.
I Ensure that the riser module engages properly in the recesses (see
figure 30 on page 86).
Ê Carefully push down the riser module until the contacts of the riser card are
fully seated in the PCIe socket.
Ê Fasten the riser module with five screws (see circles).
