Flexible static memory controller (FSMC) RM0090

1333/1422 Doc ID 018909 Rev 4

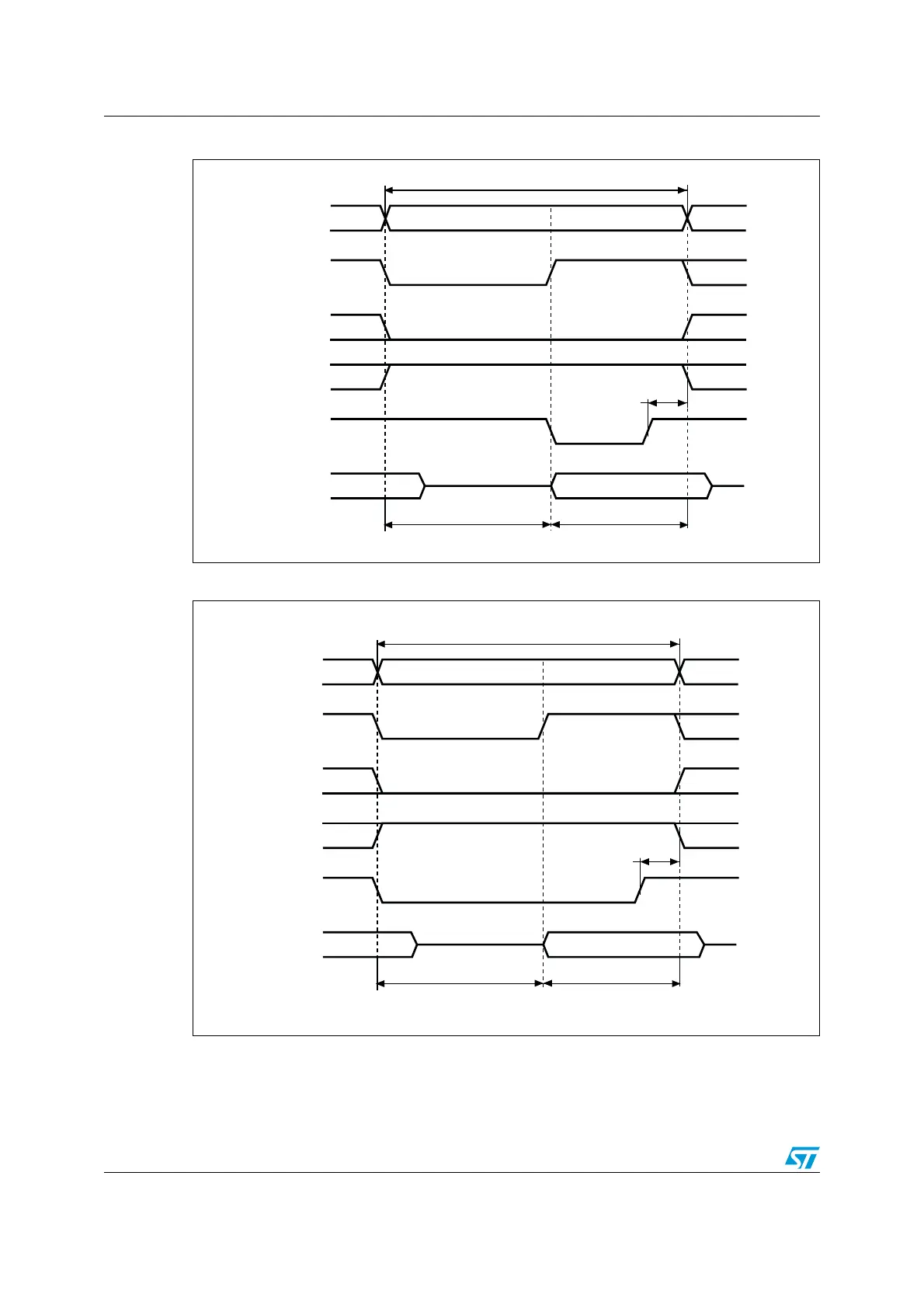

Figure 410. Mode2 write accesses

Figure 411. ModeB write accesses

The differences with mode1 are the toggling of NWE and the independent read and write

timings when extended mode is set (Mode B).

A[25:0]

NOE

ADDSET (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai15562

1HCLK

A[25:0]

NOE

ADDSET (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai15563

1HCLK
