ST STM32F40 Series User Manual

DMA controller (DMA) RM0090
215/1422 Doc ID 018909 Rev 4
9.3 DMA functional description
9.3.1 General description

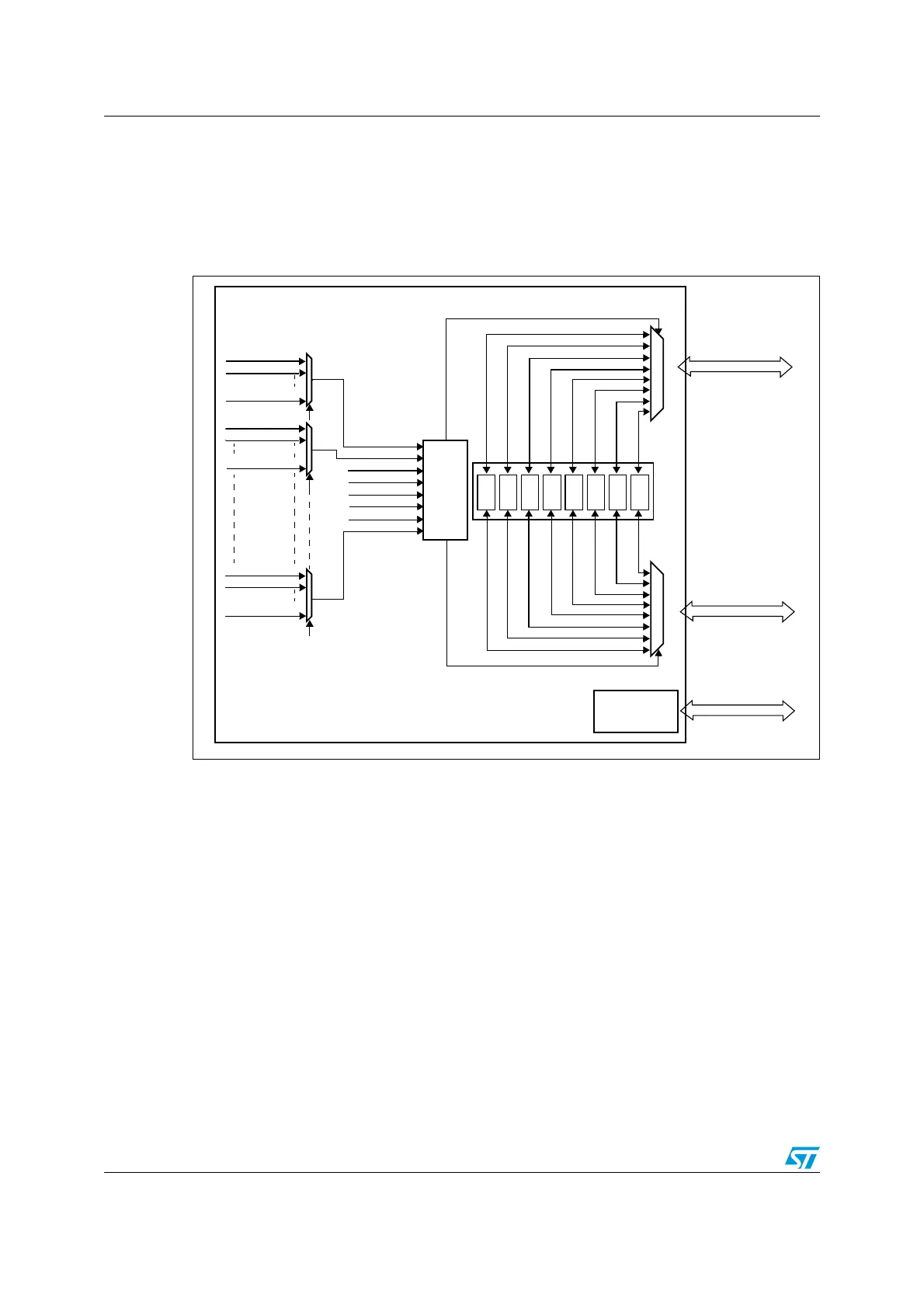

Figure 24 shows the block diagram of a DMA.
Figure 24. DMA block diagram
The DMA controller performs direct memory transfer: as an AHB master, it can take the
control of the AHB bus matrix to initiate AHB transactions.
It can carry out the following transactions:
● peripheral-to-memory
● memory-to-peripheral
● memory-to-memory
The DMA controller provides two AHB master ports: the AHB memory port, intended to be
connected to memories and the AHB peripheral port, intended to be connected to
peripherals. However, to allow memory-to-memory transfers, the AHB peripheral port must
also have access to the memories.
The AHB slave port is used to program the DMA controller (it supports only 32-bit
accesses).
See Figure 25 and Figure 26 for the implementation of the system of two DMA controllers.
AHB master
Memory port
FIFO
AHB master
Peripheral port
STREAM 0
FIFO
STREAM 1
STREAM 0 STREAM 1
FIFO
STREAM 2STREAM 2
FIFO
STREAM 7
STREAM 7
REQ_STREAM0
REQ_STR0_CH0
REQ_STR0_CH1
DMA controller
FIFO
STREAM 3STREAM 3
FIFO
STREAM 4STREAM 4
FIFO
STREAM 5STREAM 5
FIFO
STREAM 6STREAM 6
Arbiter
REQ_STREAM1
REQ_STREAM2
REQ_STREAM3
REQ_STREAM4
REQ_STREAM5
REQ_STREAM6
REQ_STREAM7
REQ_STR0_CH7
REQ_STR1_CH0
REQ_STR1_CH1
REQ_STR1_CH7
REQ_STR7_CH0
REQ_STR7_CH1
REQ_STR7_CH7
AHB slave
programming
interface
Programming port
Channel
selection
ai15945
