ST STM32F40 Series User Manual

Serial peripheral interface (SPI) RM0090
829/1422 Doc ID 018909 Rev 4
It will be: I
2
S bitrate = 32 x 2 x F
S
if the packet length is 32-bit wide.

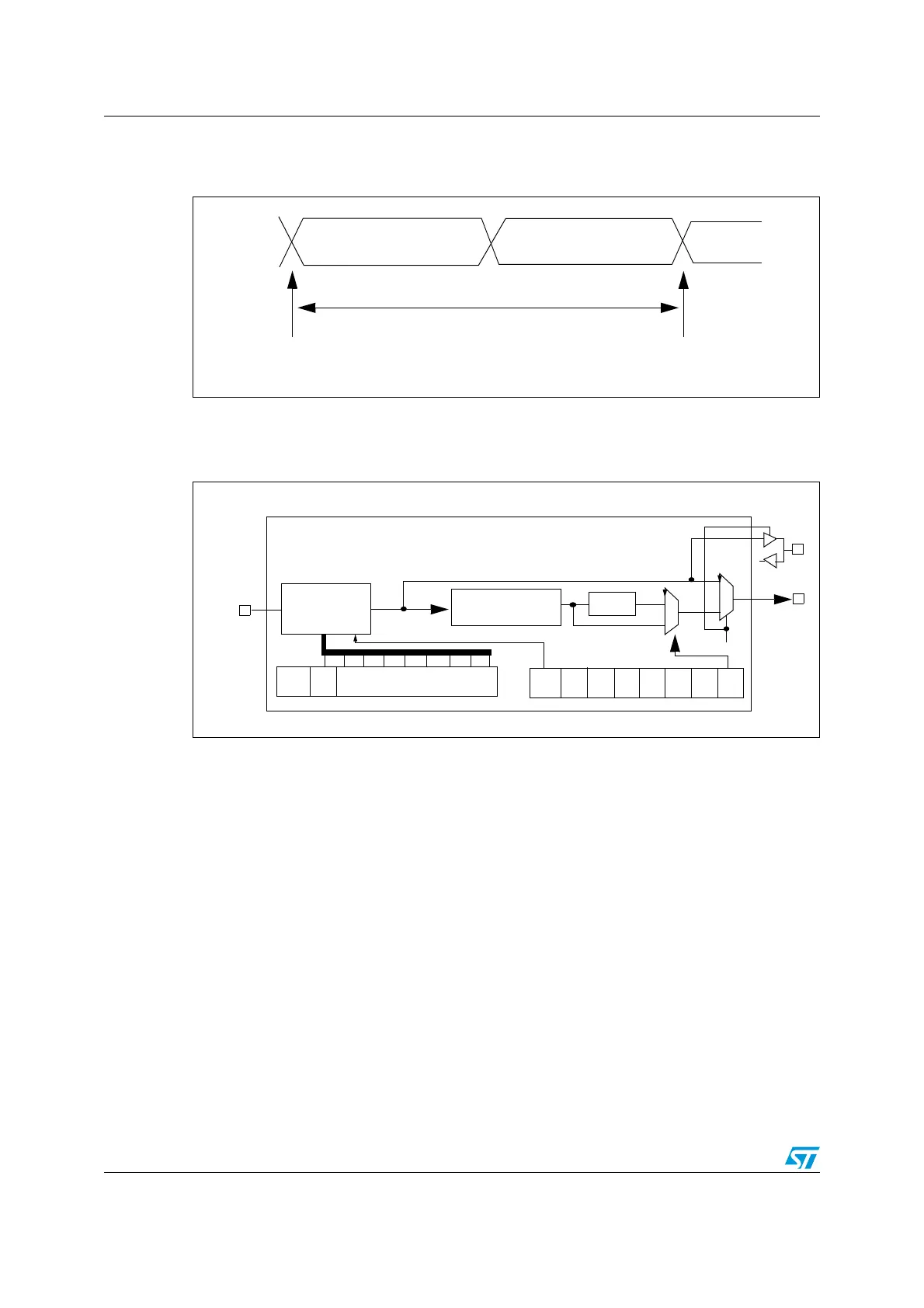

Figure 306. Audio sampling frequency definition
When the master mode is configured, a specific action needs to be taken to properly
program the linear divider in order to communicate with the desired audio frequency.
Figure 307. I
2
S clock generator architecture
1. Where x could be 2 or 3.
Figure 306 presents the communication clock architecture. To achieve high-quality audio
performance, the I2SxCLK clock source can be either the PLLI2S output (through R division
factor) or an external clock (mapped to I2S_CKIN pin).
The audio sampling frequency can be 192 kHz, 96 kHz, or 48 kHz. In order to reach the
desired frequency, the linear divider needs to be programmed according to the formulas
below:
When the master clock is generated (MCKOE in the SPI_I2SPR register is set):
F
S
= I2SxCLK / [(16*2)*((2*I2SDIV)+ODD)*8)] when the channel frame is 16-bit wide
F
S
= I2SxCLK / [(32*2)*((2*I2SDIV)+ODD)*4)] when the channel frame is 32-bit wide
When the master clock is disabled (MCKOE bit cleared):
F
S
= I2SxCLK / [(16*2)*((2*I2SDIV)+ODD))] when the channel frame is 16-bit wide
F
S
= I2SxCLK / [(32*2)*((2*I2SDIV)+ODD))] when the channel frame is 32-bit wide
Table 125 provides example precision values for different clock configurations.
Note: Other configurations are possible that allow optimum clock precision.
16-bit or 32-bit Left channel
16-bit or 32-bit Right channel
sampling point
sampling point
32-bits or 64-bits
F
S
F
S
: Audio sampling frequency
8-bit
Divider +
Linear
CK
ODD
I2SDIV[7:0]
I2SxCLK
CHLENI2SMOD
reshaping stage
Divider by 4
Div2
1
0
MCKOE
MCKOE
MCK
0
1
