RM0090 Ethernet (ETH): media access control (MAC) with DMA controller

Doc ID 018909 Rev 4 924/1422

UDP or ICMP header is not modified. For the second error type, still, the calculated

checksum is inserted into the corresponding header field.

MII/RMII transmit bit order

Each nibble from the MII is transmitted on the RMII a dibit at a time with the order of dibit

transmission shown in Figure 333. Lower order bits (D1 and D0) are transmitted first

followed by higher order bits (D2 and D3).

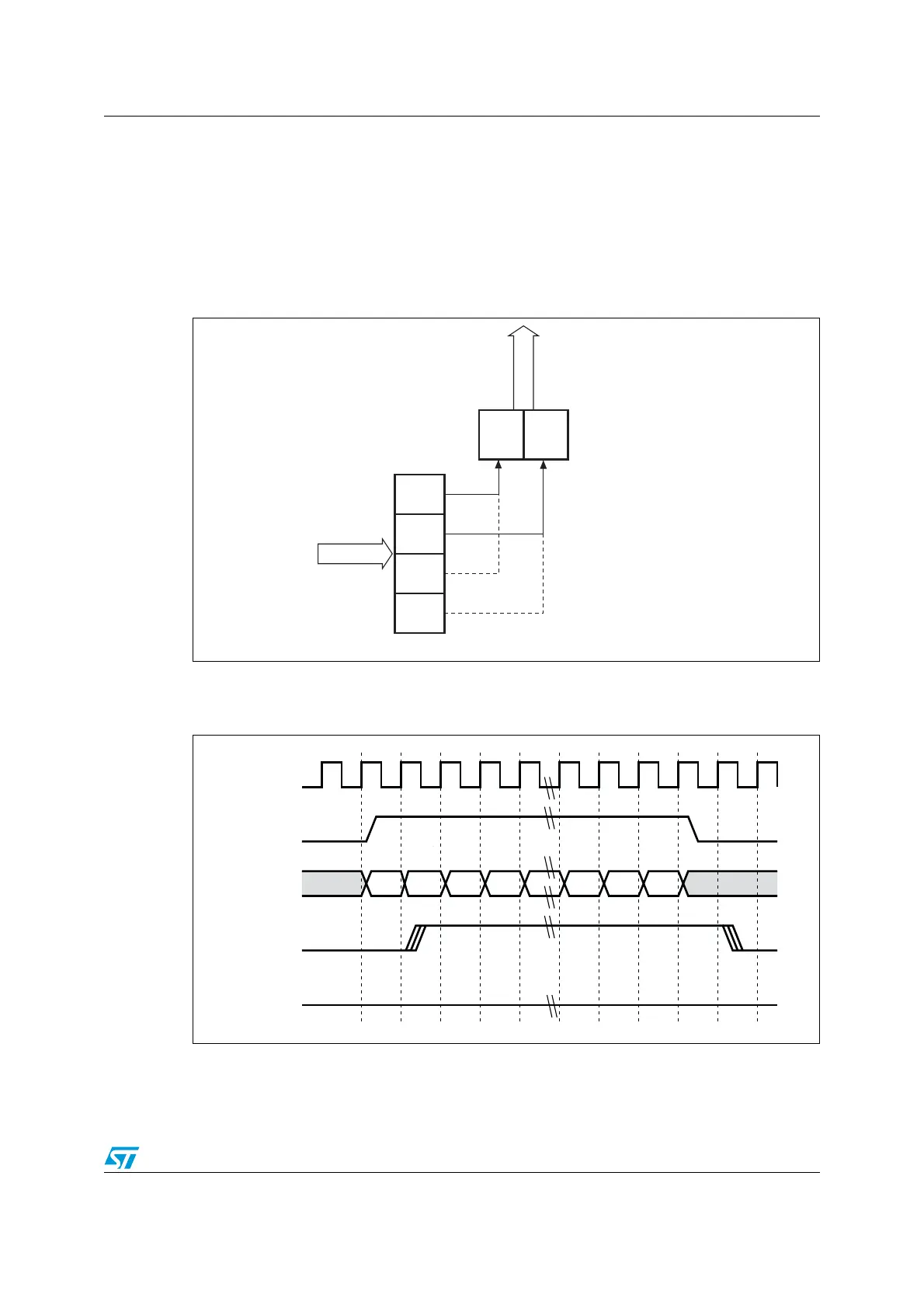

Figure 333. Transmission bit order

MII/RMII transmit timing diagrams

Figure 334. Transmission with no collision

LSB

MII_TXD[3:0]

MSB

D0 D1

LSB MSB

RMII_TXD[1:0]

Bibit stream

Nibble stream

ai15632

MII_TX_CLK

MII_TX_EN

MII_TXD[3:0]

PR EA MB LE

MII_CS

MII_COL

ai15631

Low
