RM0090 Digital-to-analog converter (DAC)
Doc ID 018909 Rev 4 316/1422

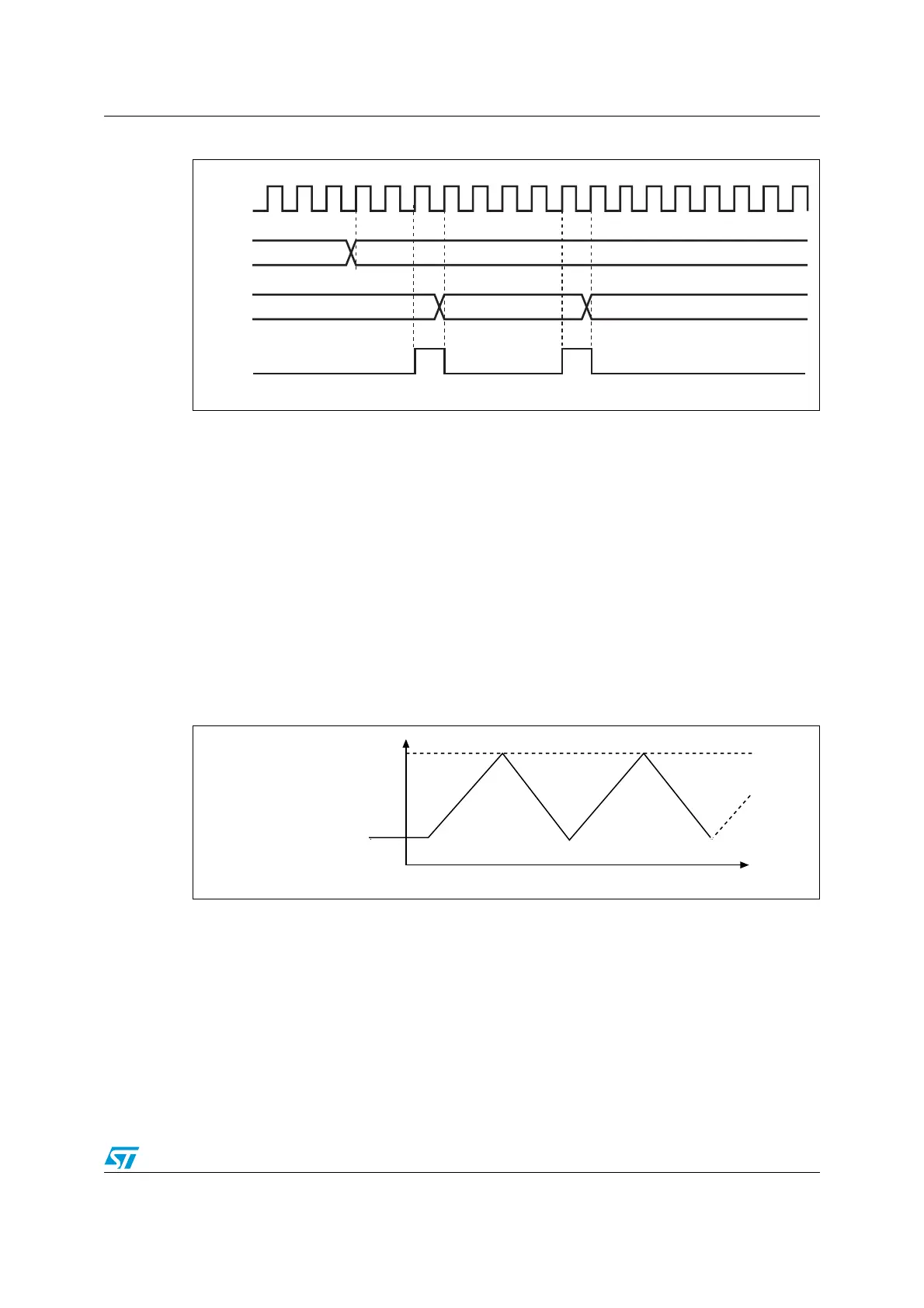

Figure 59. DAC conversion (SW trigger enabled) with LFSR wave generation
Note: The DAC trigger must be enabled for noise generation by setting the TENx bit in the
DAC_CR register.
12.3.9 Triangle-wave generation
It is possible to add a small-amplitude triangular waveform on a DC or slowly varying signal.
DAC triangle-wave generation is selected by setting WAVEx[1:0] to “10”. The amplitude is
configured through the MAMPx[3:0] bits in the DAC_CR register. An internal triangle counter
is incremented three APB1 clock cycles after each trigger event. The value of this counter is
then added to the DAC_DHRx register without overflow and the sum is stored into the
DAC_DORx register. The triangle counter is incremented as long as it is less than the
maximum amplitude defined by the MAMPx[3:0] bits. Once the configured amplitude is
reached, the counter is decremented down to 0, then incremented again and so on.
It is possible to reset triangle wave generation by resetting the WAVEx[1:0] bits.
Figure 60. DAC triangle wave generation
APB1_CLK
0x00
0xAAA
DHR
DOR
ai14714
0xD55
SWTRIG
MAMPx[3:0] max amplitude
+ DAC_DHRx base value
DAC_DHRx base value
Incrementation
ai14715c
Decrementation
0
