RM0090 Flexible static memory controller (FSMC)

Doc ID 018909 Rev 4 1336/1422

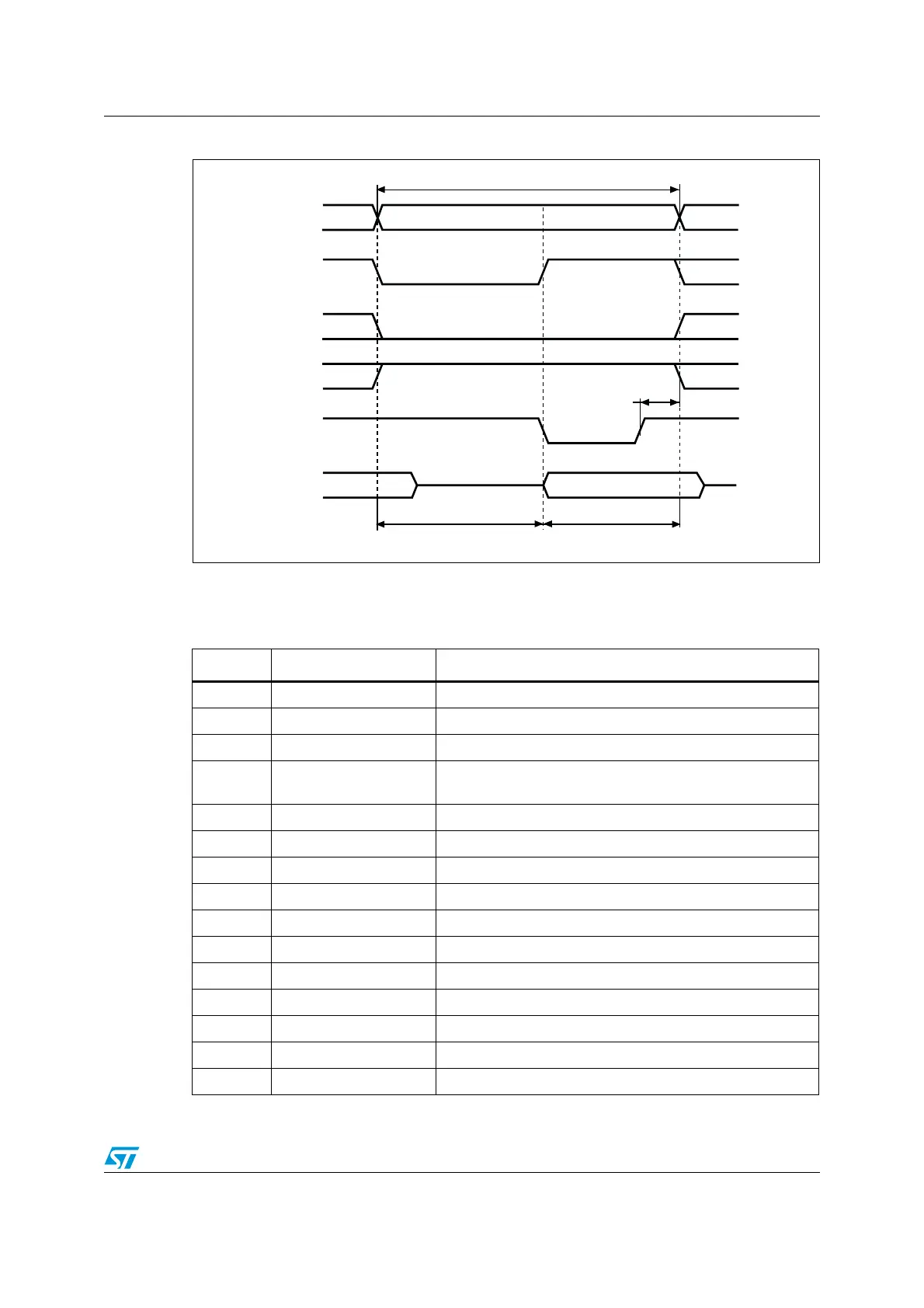

Figure 413. Mode C write accesses

The differences compared with mode1 are the toggling of NOE and the independent read

and write timings.

Table 203. FSMC_BCRx bit fields

Bit No. Bit name Value to set

31-20 Reserved 0x000

19 CBURSTRW 0x0 (no effect on asynchronous mode)

18:16 Reserved 0x0

15 ASYNCWAIT

Set to 1 if the memory supports this feature. Otherwise keep

at 0.

14 EXTMOD 0x1

13 WAITEN 0x0 (no effect on asynchronous mode)

12 WREN 0x1

11 WAITCFG As needed

10 WRAPMOD 0x0

9 WAITPOL Meaningful only if bit 15 is 1

8 BURSTEN 0x0

7 Reserved 0x1

6 FACCEN 0x1

5-4 MWID As needed

3-2 MTYP 0x2 (NOR Flash memory)

A[25:0]

NOE

ADDSET (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai15565

1HCLK
