Cryptographic processor (CRYP) RM0090

555/1422 Doc ID 018909 Rev 4

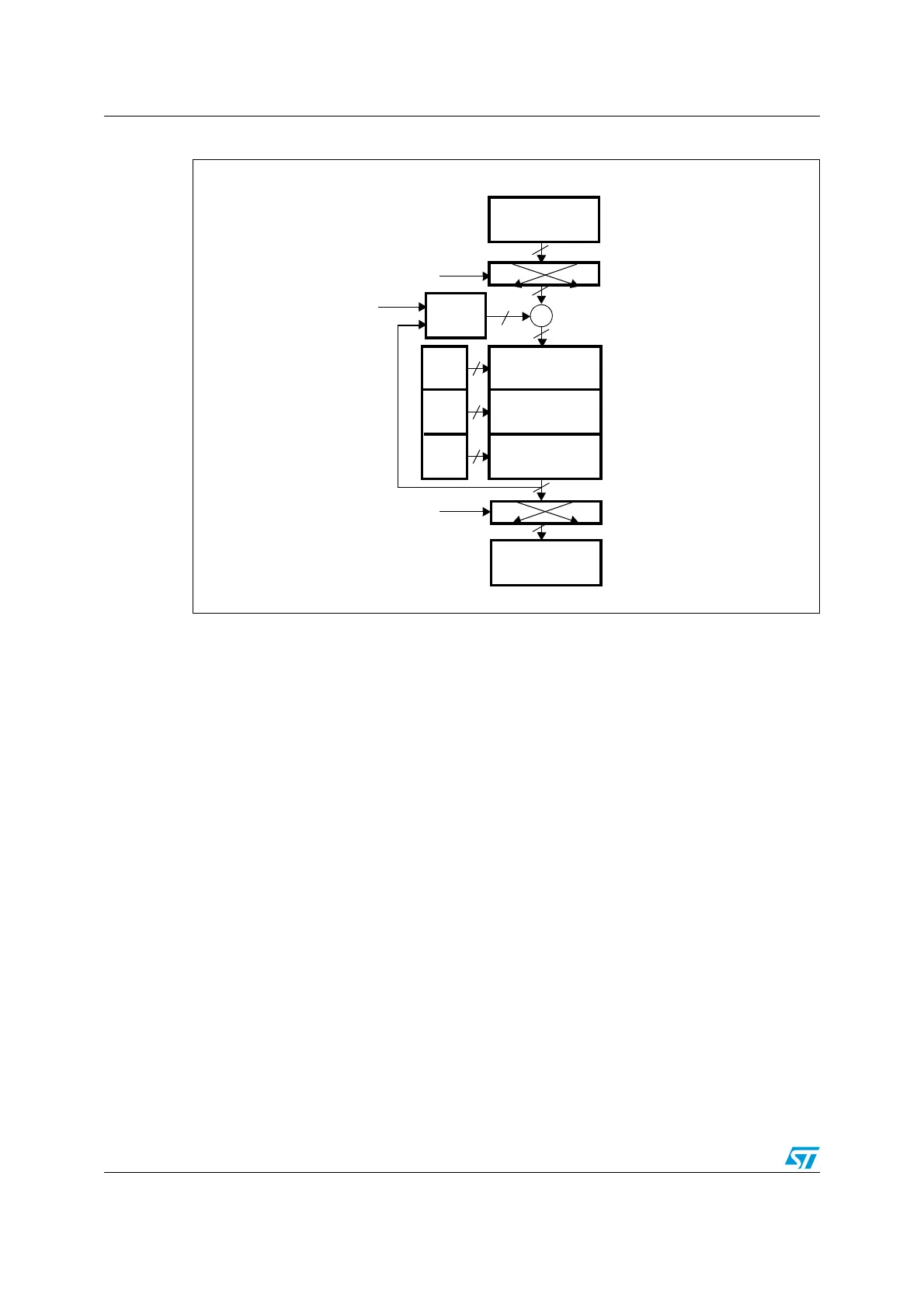

Figure 205. DES/TDES-CBC mode encryption

1. K: key; C: cipher text; I: input block; O: output block; Ps: plain text before swapping (when decoding) or

after swapping (when encoding); P: plain text; IV: initialization vectors.

IN FIFO

DEA, encrypt

P, 64 bits

DEA, decrypt

DEA, encrypt

OUT FIFO

O, 64 bits

plaintext P

ciphertext C

Ps, 64 bits

swapping

IV0(L/R)

I, 64 bits

(before CRYP

is enabled)

O is written back

into IV at the

same time as it

is pushed into

the OUT FIFO

swapping

C, 64 bits

DATATYPE

AHB2 data write

ai16070b
