RM0090 Ethernet (ETH): media access control (MAC) with DMA controller

Doc ID 018909 Rev 4 930/1422

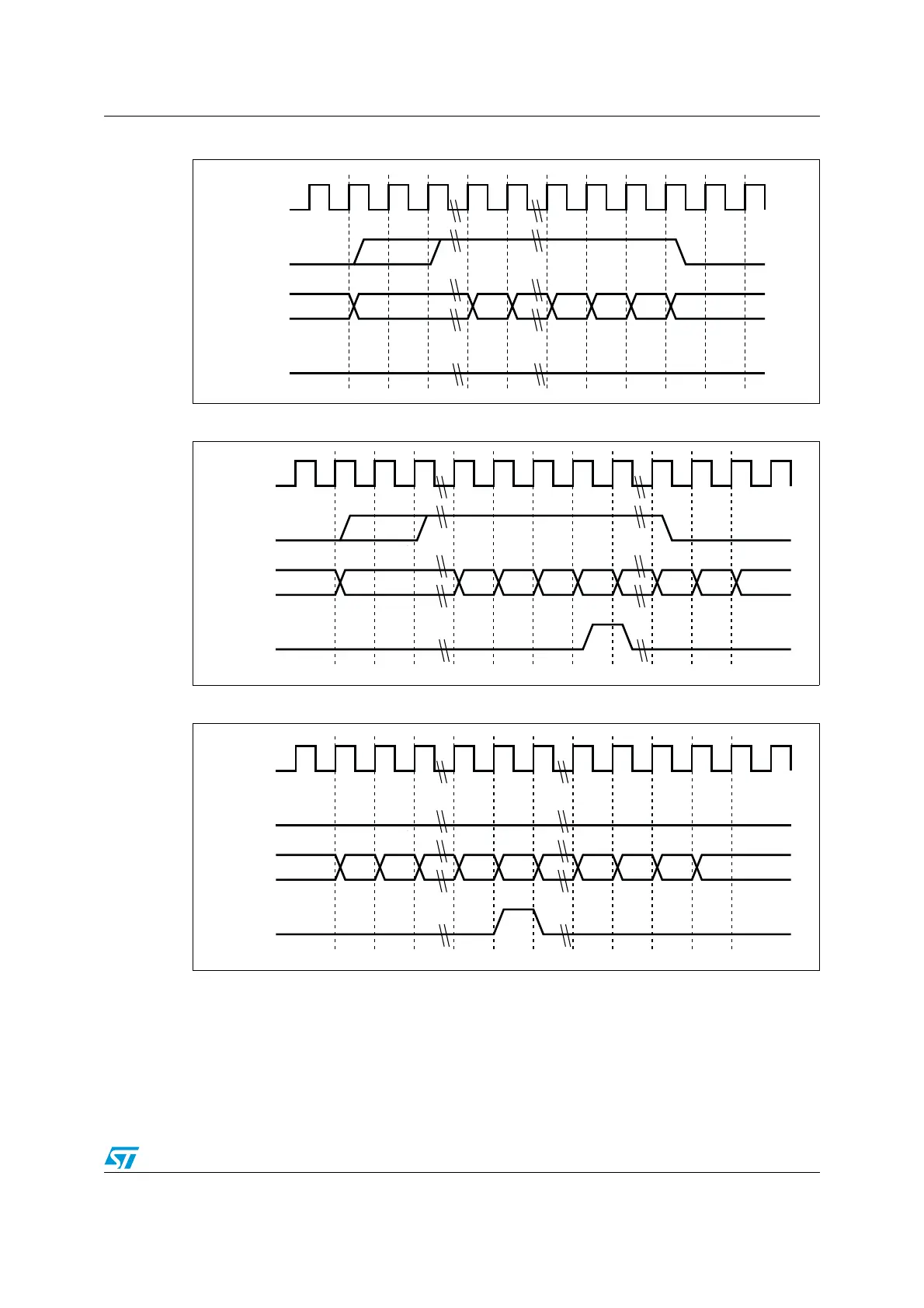

Figure 338. Reception with no error

Figure 339. Reception with errors

Figure 340. Reception with false carrier indication

29.5.4 MAC interrupts

Interrupts can be generated from the MAC core as a result of various events.

The ETH_MACSR register describes the events that can cause an interrupt from the MAC

core. You can prevent each event from asserting the interrupt by setting the corresponding

mask bits in the Interrupt Mask register.

MII_RX_CLK

MII_RX_DV

MII_RXD[3:0] PREAMBLE SFD

MII_RX_ERR

ai15634

FCS

MII_RX_CLK

MII_RX_DV

MII_RXD[3:0] PREAMBLE SFD

MII_RX_ERR

ai15635

DA DA XX XX XX

MII_RX_CLK

MII_RX_DV

MII_RXD[3:0] XX

MII_RX_ERR

ai15636

0E XX XX XX XX

XX XXXX
