RM0090 Flexible static memory controller (FSMC)

Doc ID 018909 Rev 4 1338/1422

Mode D - asynchronous access with extended address

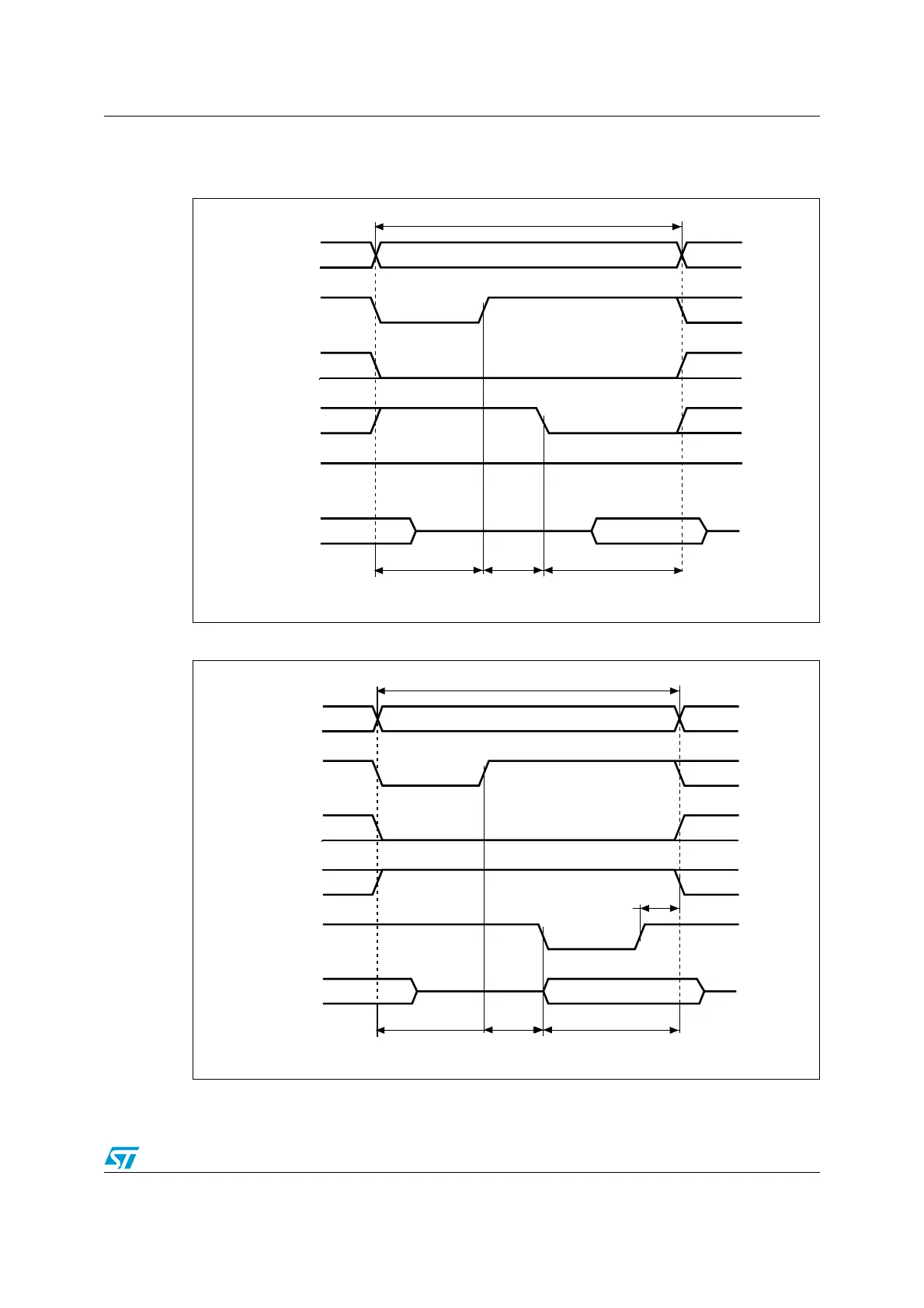

Figure 414. Mode D read accesses

Figure 415. Mode D write accesses

A[25:0]

NOE

ADDSET DATAST

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven

by memory

ai15566

High

ADDHLD

HCLK cycles

A[25:0]

NOE

ADDSET (DATAST+ 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai15567

1HCLK

ADDHLD

HCLK cycles
