RM0090 Universal synchronous asynchronous receiver transmitter (USART)

Doc ID 018909 Rev 4 766/1422

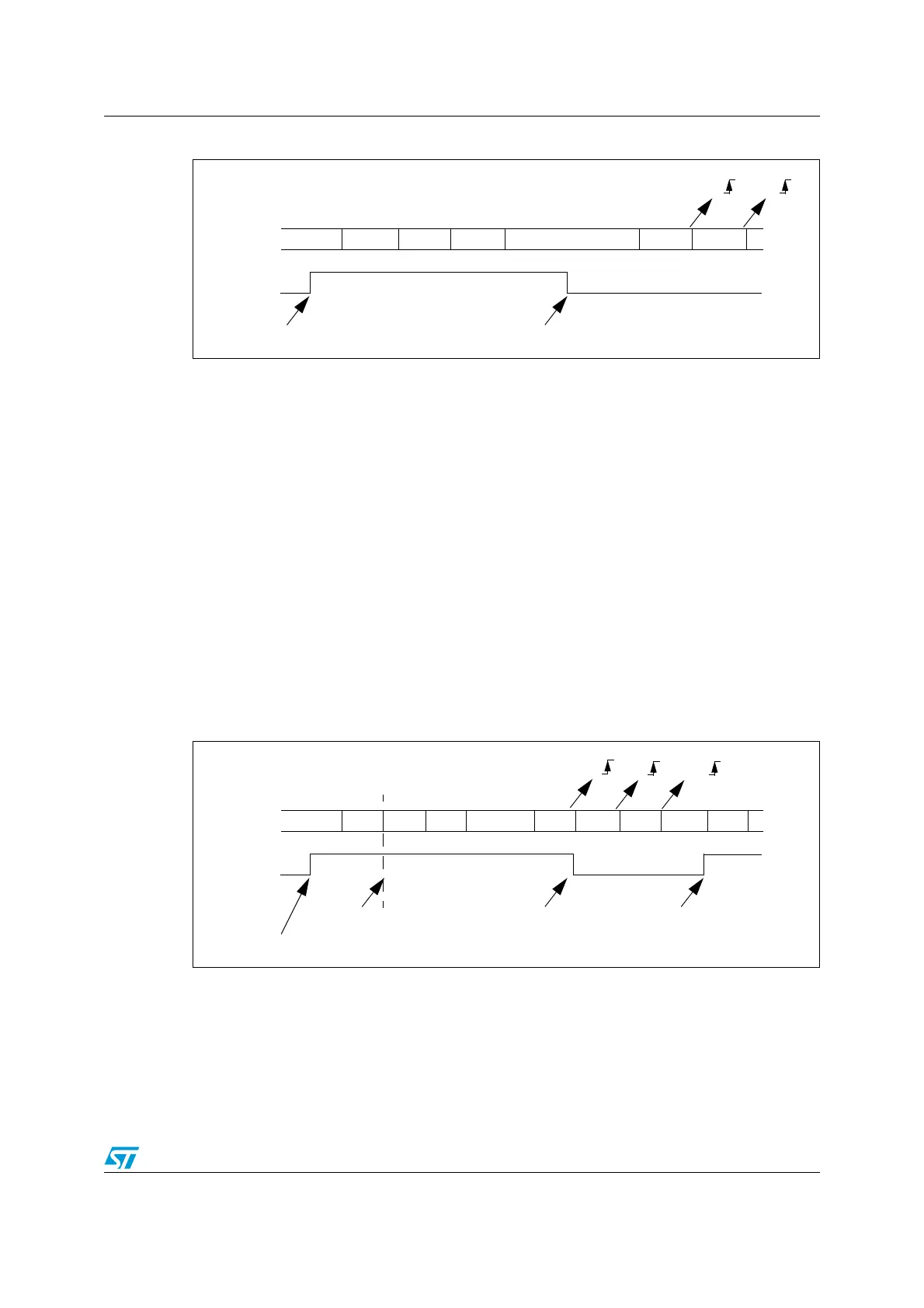

Figure 253. Mute mode using Idle line detection

Address mark detection (WAKE=1)

In this mode, bytes are recognized as addresses if their MSB is a ‘1 else they are

considered as data. In an address byte, the address of the targeted receiver is put on the 4

LSB. This 4-bit word is compared by the receiver with its own address which is programmed

in the ADD bits in the USART_CR2 register.

The USART enters mute mode when an address character is received which does not

match its programmed address. In this case, the RWU bit is set by hardware. The RXNE flag

is not set for this address byte and no interrupt nor DMA request is issued as the USART

would have entered mute mode.

It exits from mute mode when an address character is received which matches the

programmed address. Then the RWU bit is cleared and subsequent bytes are received

normally. The RXNE bit is set for the address character since the RWU bit has been cleared.

The RWU bit can be written to as 0 or 1 when the receiver buffer contains no data (RXNE=0

in the USART_SR register). Otherwise the write attempt is ignored.

An example of mute mode behavior using address mark detection is given in Figure 254.

Figure 254. Mute mode using address mark detection

RWU written to 1

Data 1 IDLE

Data 2 Data 3 Data 4 Data 6Data 5

RWU

Mute Mode Normal Mode

Idle frame detected

RXNE RXNE

RWU written to 1

IDLE

Addr=0

RWU

Mute Mode Normal Mode

Matching address

RXNE RXNE

(RXNE was cleared)

Data 2 Data 3 Data 4 Data 5Data 1 IDLE Addr=1 Addr=2

Mute Mode

In this example, the current address of the receiver is 1

(programmed in the USART_CR2 register)

nonmatching address

RXNE
