Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-19
Theory of Operation
■ Tray 2 Retard Roller/Feed Roller
The Retard Roller and Feed Roller pinch the paper to prevent multiple
sheets of paper from feeding.
■ Tray 2 End Guide
The End Guide moves in toward the paper transfer direction to determine
the paper size. The On/Off of the Size Switches adjust according to the
Tray End Guide position to detect the paper size.

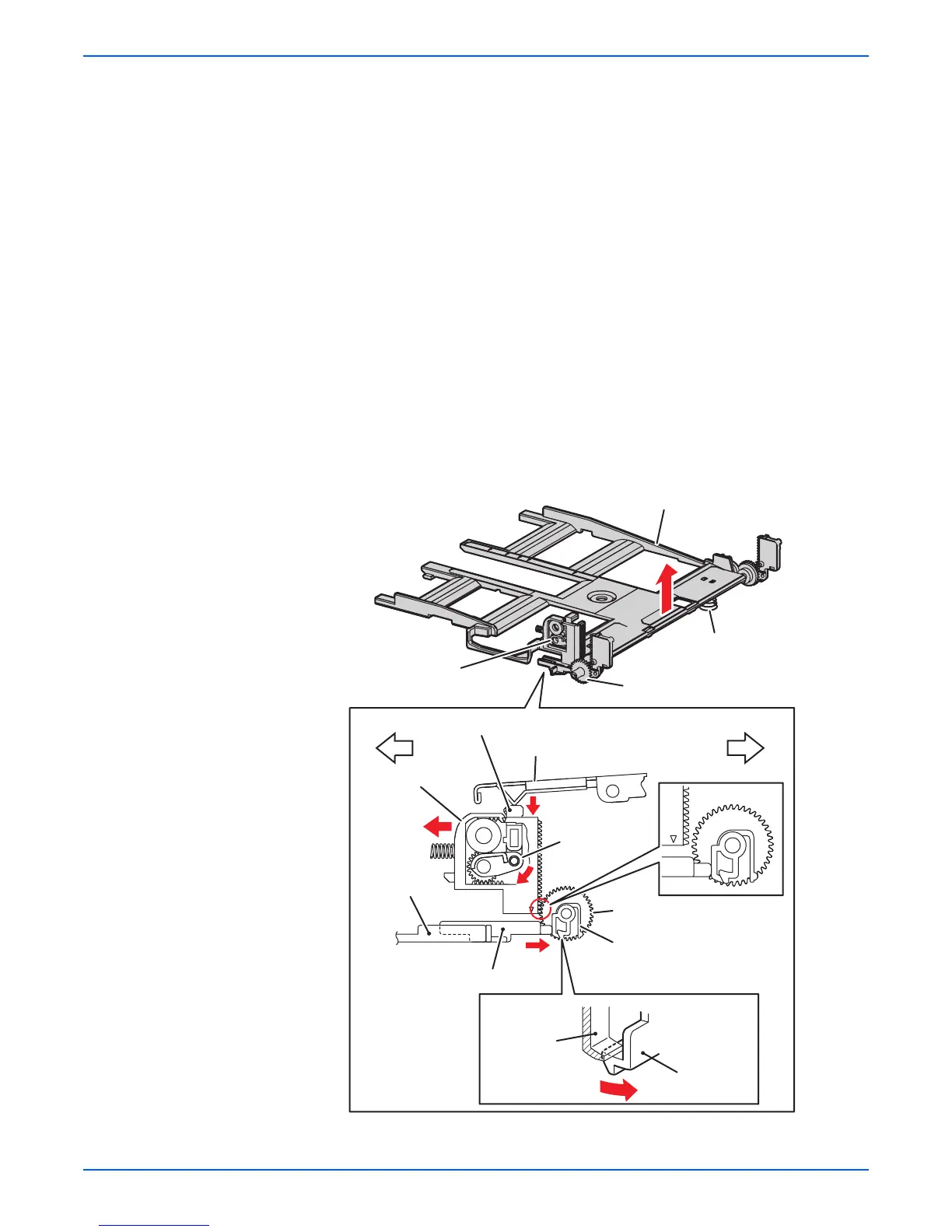

■ Tray 2 Bottom Plate
a. When the tray is inserted into the Sheet Feeder, the Actuator is
pushed toward the front by the Left Guide, which pushes the Stopper.
b. The Stopper unlocks the Bottom Lock Oneway Gear.
c. When the tray is pushed until it stops, the Bottom Lock Lever is
pressed down by the Support Nudger in the Sheet Feeder.
d. The Bottom Lock Lever actuates the Bottom Lock Lever Gear, which
pushes the Bottom Rack Lock toward the rear.
e. The gear on the Bottom Rack Lock is disengaged from the Bottom
Lock Oneway Gear, which allows the Bottom Plate to raise up by the
Bottom Up Springs.
Bottom Lock Oneway Gear
Bottom Rack Lock
s6180mfp-043
a
b
c
d
e
Bottom Lock Oneway Gear
Stopper
Stopper
Lock Part
(Tray Housing)
Bottom Lock Lever
Support Nudger
Bottom Rack Lock
Actuator
Left Guide
Bottom Lock
Lever Gear
Front of TrayRear of Tray
Bottom Plate
Bottom Up Spring

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
