Xerox Phaser 6180MFP Service Manual

2-30 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation

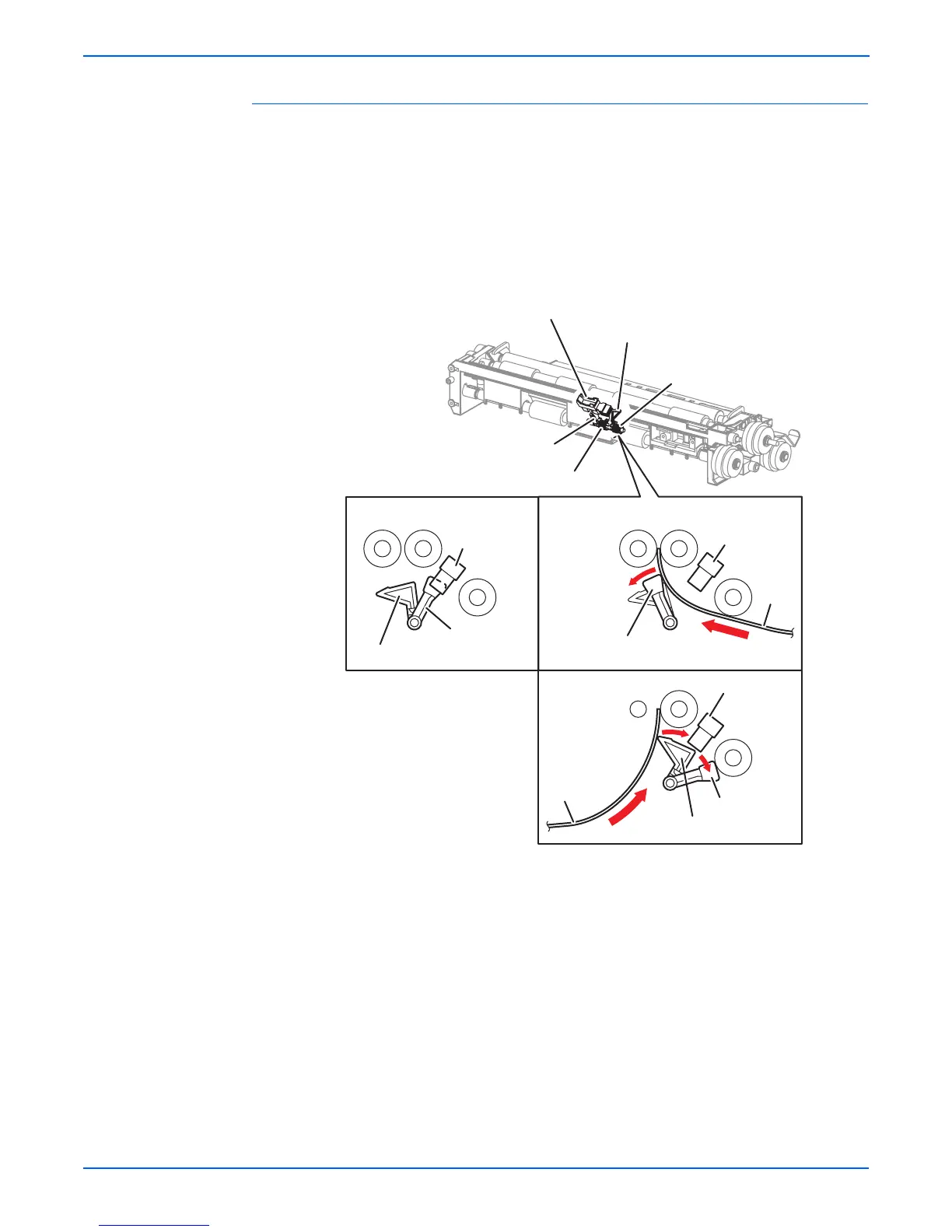

Paper Detection
Since the paper path from Tray 1/Duplex to the Registration Sensor and from
the paper tray to the Registration Sensor are different, the Registration
Sensor is provided with Actuators A and B.
■ Actuator A detects the sheet fed from Tray 1/Duplex.
■ Actuator B detects the sheet fed from the paper tray.
The movement of Actuator A does not affect Actuator B.
s6180mfp-053
Registration
Sensor
Actuator A
Actuator B
From Paper Tray
Paper
Normal Position
Registration
Sensor
Registration
Sensor
Actuator A
Actuator A
Actuator B
Actuator A
Actuator B
From Tray 1 (MPT) or Duplex
Paper
Registration Sensor Spring (A)
Registration
Sensor Spring (B)
Registration Sensor

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
