Xerox Phaser 6180MFP Service Manual

2-46 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation

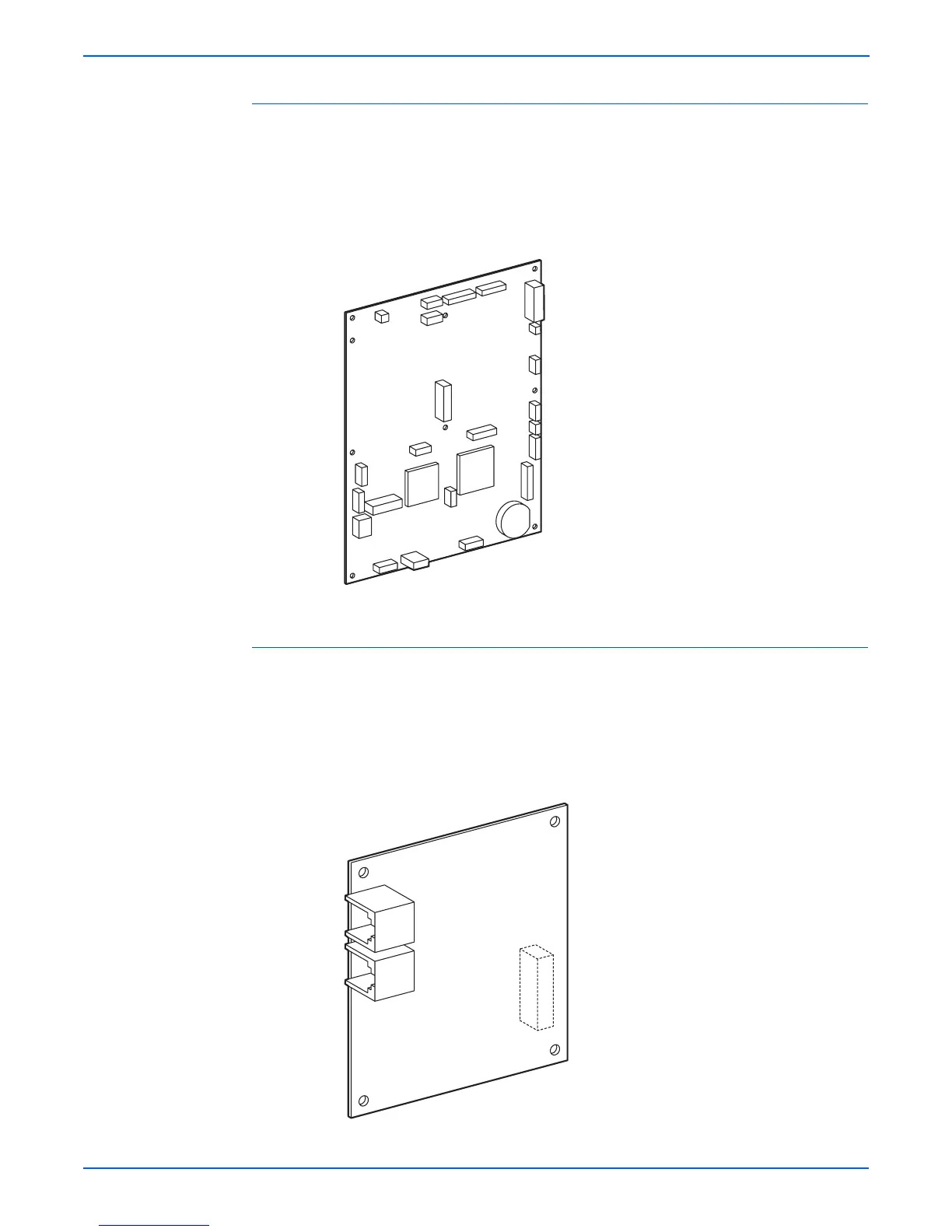

Scanner Controller Board
The Scanner Controller Board is the logic interface between the Scanner, Fax
Modem, MCU, and Image Processor boards. It’s primary function is to control
and manage copy scan and fax image information. During the copy (scan or
fax) process, RGB data is collected by the scanhead and then converted by
the Scanner Controller Board into CMYK data. CMYK data is then routed
either to the MCU, I/P Board, or Fax Modem for proper management.
Fax Board
The Fax Board provides and interfaces between remote fax machines and the
Scanner Controller Board. Incoming fax data is received by the modem board
and is passed directly to the Scanner Controller Board for further processing.
Outgoing fax data is passed from the Scanner Controller Board at the
appropriate timing sequence when a clear transmission line has been
established.
s6180mfp-425
s6180mfp-426

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
