Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-51
Theory of Operation
Optional 550-Sheet Feeder
■ Tray 3 No Paper Sensor
The No Paper Sensor detects the presence of the paper in the paper tray
based on the No Paper Actuator position.
■ Tray 3 Feed Clutch
The Feed Clutch transmits drive energy from the Feeder Drive to the Feed
Roller.
■ Tray 3 Feed Roller
When the Feed Clutch operates, the Feed Roller rotates and feeds the
paper.
■ Tray 3 Turn Clutch
The Turn Clutch transmits drive energy from the Optional 550-Sheet
Feeder Drive through the Turn Clutch to feed the paper from the paper
tray to the printer.
■ Optional 550-Sheet Feeder Drive
The Optional 550-Sheet Feeder Drive drives the rollers of the Optional
Feeder.
■ Optional 550-Sheet Feeder Board
The Optional 550-Sheet Feeder Board controls the Motor, Sensor, and
Clutch.

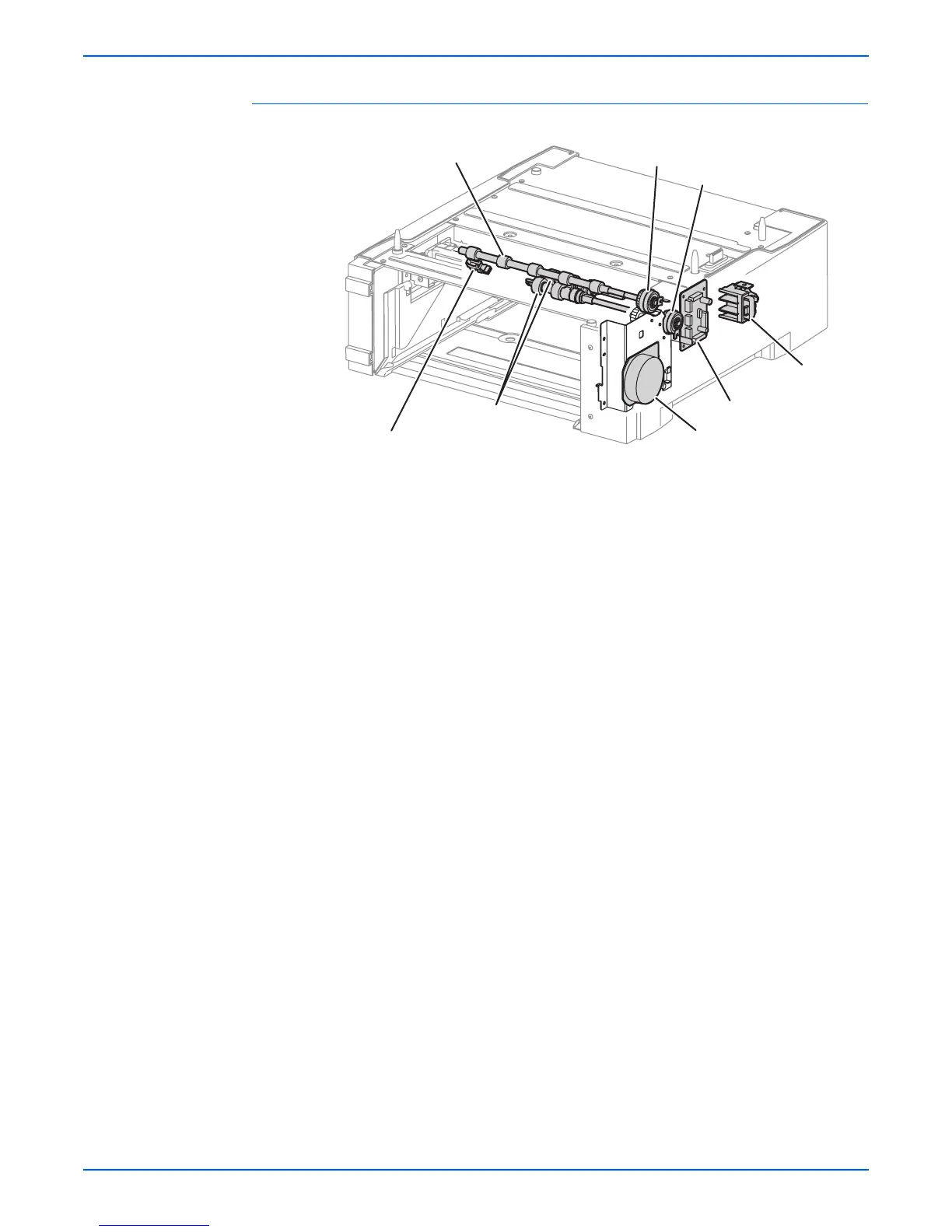

s6180mfp-060
Turn Roller
Turn Clutch
Feed Clutch
Size Switch
Optional Feeder Board
Optional Feeder Drive
Feed Roller
Tray 3 No Paper Sensor

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
