Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 2-95
Theory of Operation
Telephone Call Mechanism
There are two types of telephone line corresponding to the two ways of
transmitting the phone number. They are known as dial types. Most recent
telephones can automatically distinguish the dial type.
One type is “Pulse Dialing (PD),” also called “Dial Pulse (DP).” After the rotary
dial on a dial phone is rotated, the dial returns to its original position. While
returning, the electric current is interrupted (dividing the signal into pulses) the
number of times corresponding to the number dialed. The switch derives the
number from the number of pulses. When the pulse repetition rate is ten
pulses per second, it is referred to as 10PPS (Pulses Per Second), when
twenty, 20PPS.
The other type is known as “Tone Dialing (TD),” formally called “Dual-Tone
Multi-Frequency (DTMF).” Each button on a push-button phone is assigned a
unique pair of frequencies (the “tone”), from which the switch derives the
number.
s6180mfp-103
697Hz
1209Hz 1336Hz 1447Hz
770Hz
852Hz
941Hz

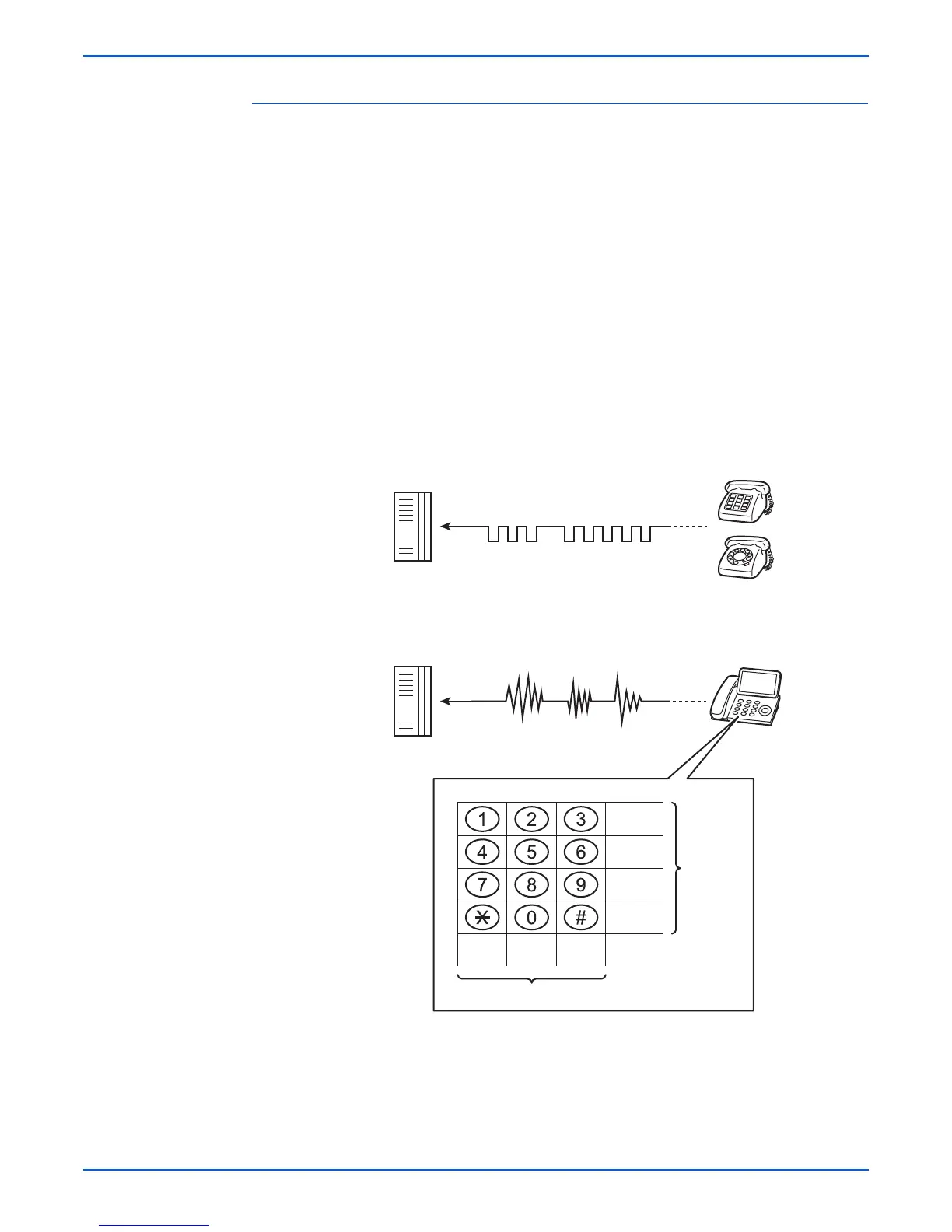

Pulse Dialing & Tone Dialing
Pulse Dialing
Tone Dialing
Switch
Switch
Low
Frequency
High Frequency
DTMF Matrix
35
.........
352
.........
"3, 5, ...... "
"3, 5, 2, ...... "

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
