Phaser 6180MFP Multifunction Printer Service Manual 4-65
General Troubleshooting
Regi Clutch
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light if the Front Door will be opened for prolonged
periods.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-9).
4. Remove the Print Cartridges (page 8-11).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Tray 2 Motor (FULL2) test: Printer Diag > Engine Diag >
Motor Test > Tray 2 Motor (FULL2).
7. While the Tray 2 Motor is running, press the Up Arrow button to find Regi
Clutch. Press the OK button to run the Regi Clutch test.
N
o
t
e
The Registration Rollers rotate when the Tray 2 Motor (FULL2) and the
Registration Clutch tests are executed.
8. Verify that the Tray 2 Motor is running and the Registration Rollers are
rotating.
9. Press the Stop button to stop the Regi Clutch test.
10. Press the Down Arrow button to find Tray 2 Motor (FULL2).
11. Press the Stop button to stop the Tray 2 Motor test.
12. Remove the paper clip from the Interlock Switch.

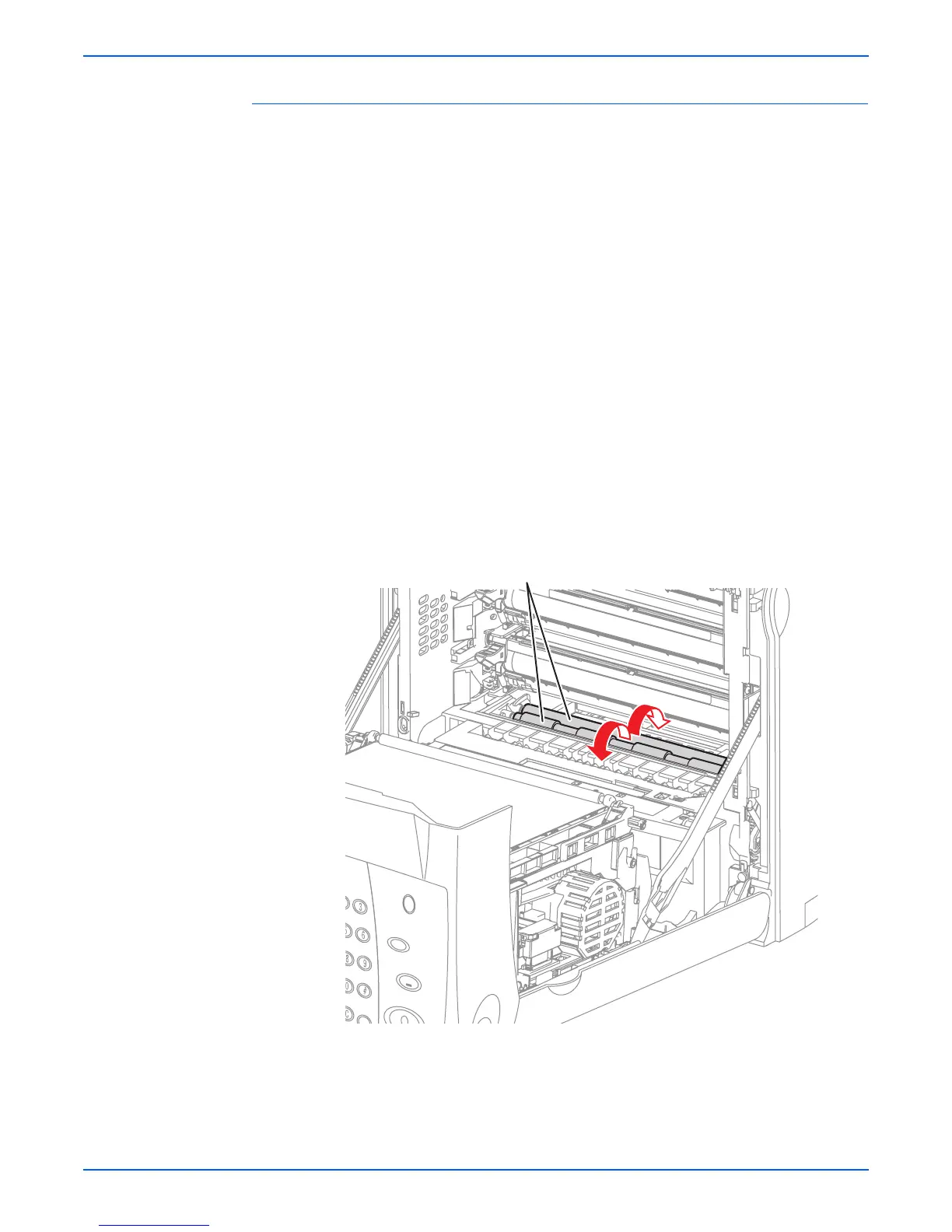

Registration Rollers
s6180mfp-185
