General Troubleshooting
Tray 1 (MPT) Turn Clutch
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 2.
3. Perform the Tray 2 Motor (FULL2) test: Printer Diag > Engine Diag >
Motor Test > Tray 2 Motor (FULL2).
4. While the Tray 2 Motor is running, press the Up Arrow button to find
Tray 1 (MPT) Turn Clutch. Press the OK button to run the Tray 1 (MPT)
Turn Clutch test.
N
o
t
e
The Tray 1 (MPT) Turn Rollers rotate when the Tray 2 Motor (FULL2) and
the Tray 1 (MPT) Turn Clutch tests are executed.
5. Verify that the Tray 2 Motor is running and the Turn Rollers are rotating.
6. Press the Stop button to stop the Tray 1 Turn Clutch test.
7. Press the Down Arrow button to find Tray 2 Motor (FULL2).
8. Press the Stop button to stop the Tray 2 Motor test.

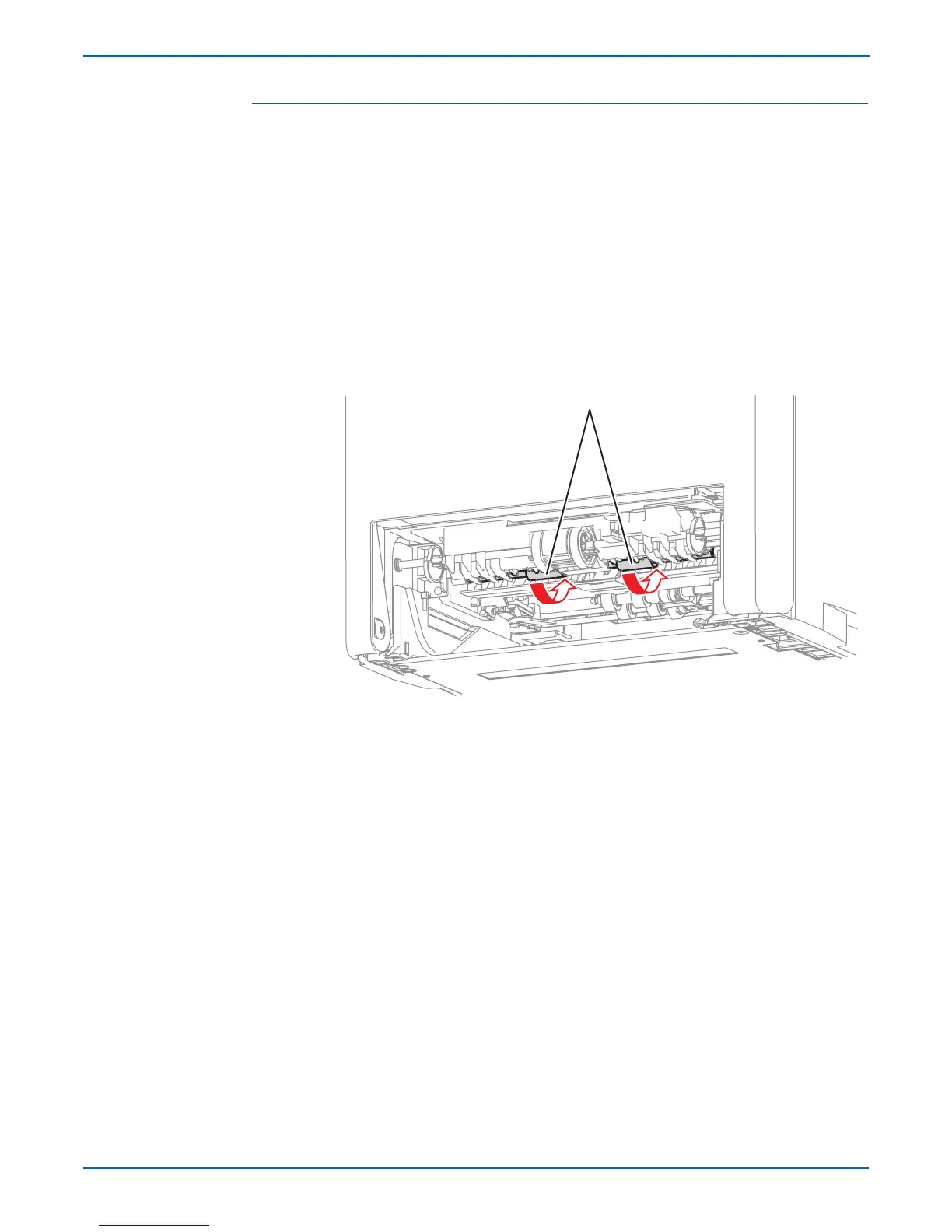

Tray 1 (MPT) Turn Roller
s6180mfp-186
