Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 4-67
General Troubleshooting
Tray 1 (MPT) Feed Solenoid
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 2.
3. Perform the Tray 2 Motor (FULL2) test: Printer Diag > Engine Diag >
Motor Test > Tray 2 Motor (FULL2).
4. While the Tray 2 Motor is running, press the Up Arrow button to find
Tray 1 (MPT) Feed Solenoid. Press the OK button to run the Tray 1
(MPT) Feed Solenoid test.
N
o
t
e
The Tray 1 (MPT) Feed Roller rotates when the Tray 2 Motor (FULL2) and
the Tray 1 (MPT) Feed Solenoid tests are executed.
5. Verify that the Tray 2 Motor is working and the Tray 1 Feed Roller is
rotating.
6. Press the Stop button to stop the Tray 1 Feed Solenoid test.
7. Press the Down Arrow button to find Tray 2 Motor (FULL2).
8. Press the Stop button to stop the Tray 2 Motor test.

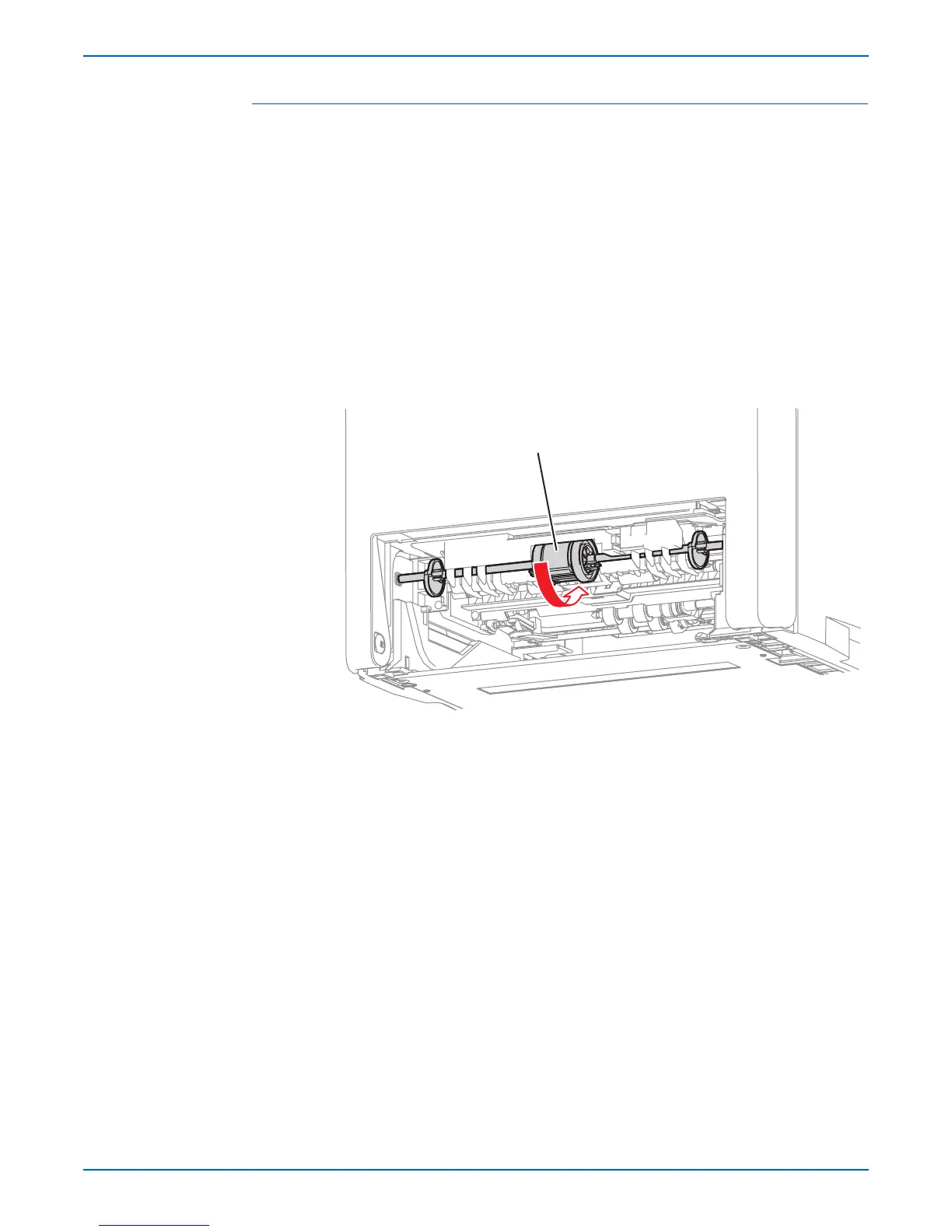

Tray 1 (MPT) Feed Roller
s6180mfp-187

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
