Xerox Phaser 6180MFP Service Manual

4-68 Phaser 6180MFP Multifunction Printer Service Manual
General Troubleshooting
Tray 2 Feed Clutch
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 2.
3. Perform the Tray 2 Feed Motor (FULL2) test: Printer Diag > Engine Diag
> Motor Test > Tray 2 Motor (FULL2).
4. While the Tray 2 Motor is running, press the Up Arrow button to find
Tray 2 Feed Clutch. Press the OK button to run the Tray 2 Feed Clutch
test.
N
o
t
e
The Tray 2 Feed Rollers rotate when the Tray 2 Motor (FULL2) and the
Tray 2 Feed Clutch tests are executed.
5. Verify that the Tray 2 Motor is working and the Tray 2 Feed Rollers are
rotating.
6. Press the Stop button to stop the Tray 2 Feed Clutch test.
7. Press the Down Arrow button to find Tray 2 Motor (FULL2).
8. Press the Stop button to stop the Tray 2 Motor test.
s6180mfp-188

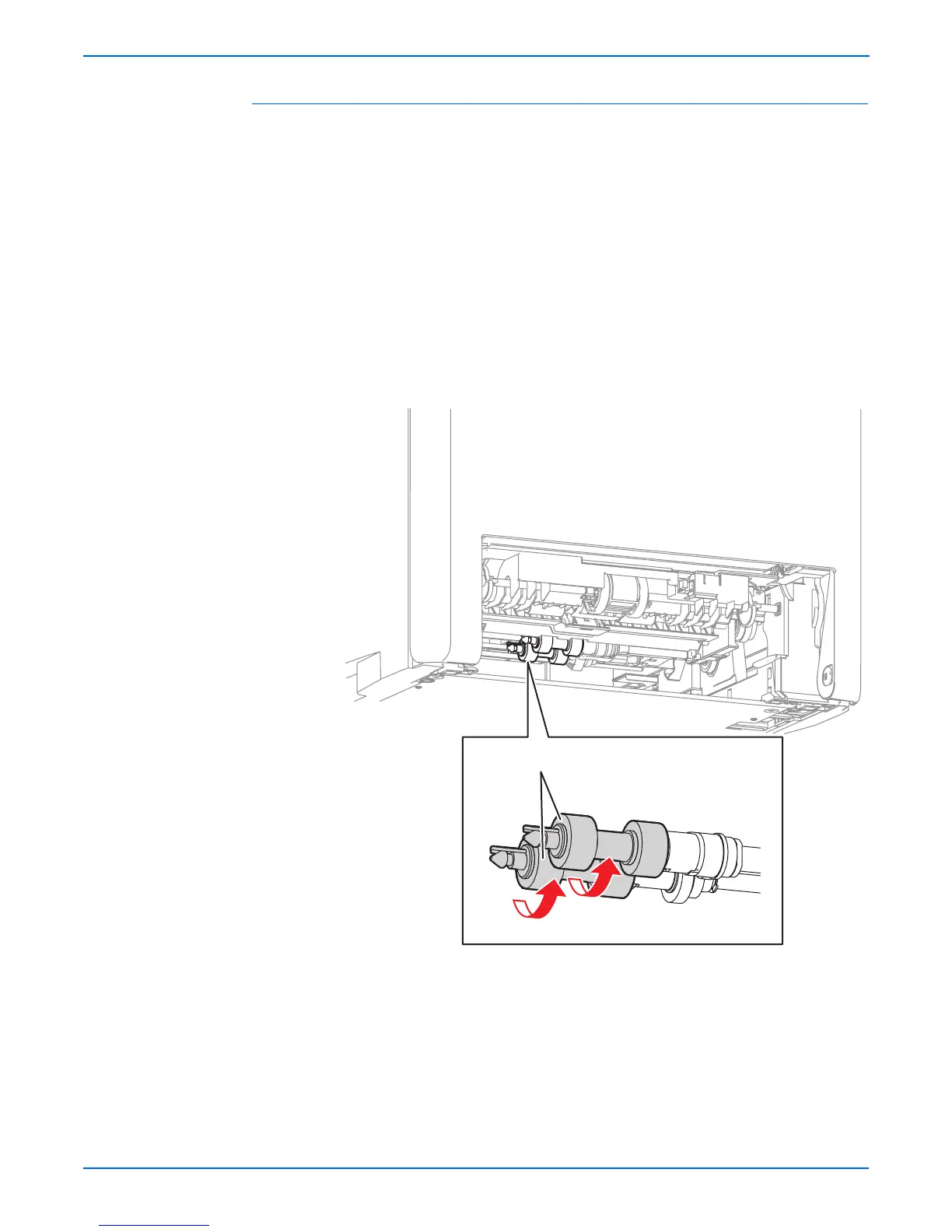

Tray 2 Feed Rollers

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
